High Voltage Cable Assembly - Series C 737 Double-Ended Plug
High Voltage Cable Assembly - Series C 737 Double-Ended Plug
SKU:HIG-97d2cc
High voltage cable assembly with 15kVDC rating, RoHS compliant, and durable design.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
High Voltage Cable Assembly - Series C 737 Double-Ended Plug
$89.99
Quantity: 1
Claim Your Seller Account
High Voltage Cable Assembly - Series C 737 Double-Ended Plug
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Series C 737 Cable Assembly Positive Stop (ferrule) Double-Ended Plug is a high-quality, high voltage cable designed for reliability and performance. With a voltage rating of 15 kVDC and a current rating of 10 A, this assembly is suitable for a range of industrial applications. Its Altitude/Reduced Pressure Rating of 70,000 ft and operating temperature of -55 to 95 °C ensure durability in various environments. The assembly is RoHS compliant and features insulator material made of plastic, enhancing its safety and efficiency. With BeCu contact material and gold contact finish, it ensures secure connections and optimal conductivity.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Contact Properties Contact Finish
Gold
Contact Properties Contact Material
BeCu with CRES hood

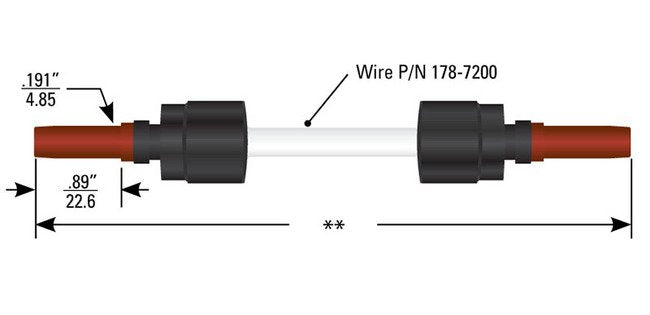

Dimensions A Diameter
.191 in | 4.85 mm
Dimensions B
.89 in | 22.6 mm
Specifications Altitudereduced Pressure Rating
70,000 ft.
Specifications Assembly Type
Double-Ended Plug Cable Assembly
Specifications Coupling Style
Threaded
Specifications Current Rating
10 A
Specifications Export Classification
TBD
Specifications Insulator Material
Plastic
Specifications Lgh Compatibility
LGH 1/2I
Specifications Mating Compatibility
All C 737 lead assembliesAll series 737 lead assembliesAll LGH 1/2I lead assemblies
Specifications Operating Temperature
-55 to 95 ºC
Specifications Rohs Compliant
TBD
Specifications Sealed Receptacle
N/A
Specifications Series
C 737
Specifications Test Voltage
18 kVDC
Specifications Voltage Rating
15 kVDC
Specifications Wire Insulation
White 0.160 Dia. silicone rubber, #AWG 16
Specifications Wire Pn
178-7200
