The High Voltage Cable Connector (15 kVDC, Series 531) is engineered for enhanced user safety with recessed contacts, preventing electrical shock risks. Featuring a spring finger body contact for a secure ground circuit, this connector ensures reliable performance in high voltage applications. With a voltage rating of 15 kVDC and operating temperatures from -40 to 85°C, it meets stringent safety standards. The bayonet coupling style and durable materials like BeCu/Au for plug contact and brass/Au for receptacle contact make it ideal for institutional and government procurement needs.
Product Specifications
Contact Properties Contact Type
Male
Coupling Nut Properties Bayonet Coupling Nut Finish
Nickel
Coupling Nut Properties Bayonet Coupling Nut Material
Brass
Ordering Information 0
Cable Assembly Ordering Information Length Tolerance Chart Example : 167-4237-10F-8N Length Tolerance Cable Assembly Type 7 1/2' or less ±1/4" 10 feet 8 inches 7 1/2' to 12 1/2' ±1" Example : 167-4237-18N 12 1/2' to 22 1/2' ±1 1/2" Cable Assembly Type 22 1/2' to 35' ±2" 18 inches 35' to 50' ±3" 50' to 70' ±4" 70' to 100' ±5"

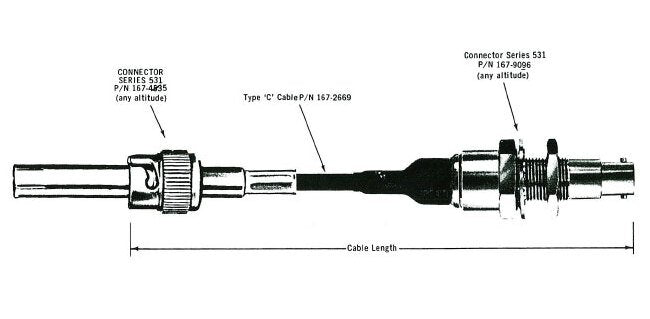

Specifications Accomodates
Type 'C' Cable (P/N 167-2669)
Specifications Altitudereduced Pressure Rating
70,000 ft.
Specifications Assembly Type
Single-Ended Receptacle Cable Assembly
Specifications Braid Termination
Crimp
Specifications Coupling Style
Bayonet
Specifications Current Rating
10 A
Specifications Export Classification
TBD
Specifications Operating Temperature
-40 to 85 ºC
Specifications Plug Contact Materialfinish
BeCu/Au
Specifications Plug Insulator Material
Plastic
Specifications Receptacle Contact Materialfinish
Brass/Au
Specifications Receptacle Insulator Material
Plastic
Specifications Rohs Compliant
TBD
Specifications Sealed Receptacle
No
Specifications Series
531
Specifications Standardnon Standard
Standard Part
Specifications Test Voltage 70000 Ft
31
Specifications Voltage Rating
15 kVDC
Specifications Wire Insulation
PE
Specifications Wire Type
Shielded
