High-Voltage Ceramic Capacitor - HT57 Series
High-Voltage Ceramic Capacitor - HT57 Series
SKU:CER-b48904
Precision HT57 Series Ceramic Capacitors with 25pF capacitance, 15kV DC, and 10-32 thread for high-voltage applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
High-Voltage Ceramic Capacitor - HT57 Series
$29.99
Quantity: 1
Claim Your Seller Account
High-Voltage Ceramic Capacitor - HT57 Series
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

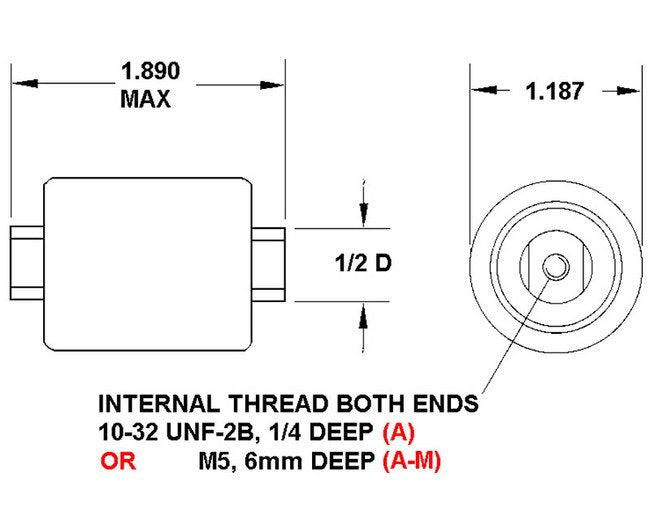

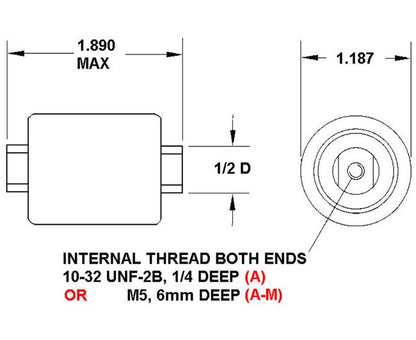

The HT57 Series Ceramic Capacitors are designed for high-performance applications requiring reliability and precision. With a capacitance of 25 pF and a maximum voltage rating of 15 kV DC, these capacitors offer exceptional stability and low loss in NP0 dielectric material. Operating in a frequency range from 1.98 MHz to 28.4 MHz, they can handle a maximum RMS current of 12.5 A, making them ideal for demanding industrial and institutional environments. The 10-32 threaded design ensures secure mounting and easy integration into various systems.
Product Specifications
Specifications Cap
25 pF
Specifications Dielectric Tc
NP0
Specifications Fh
28.4 MHz
Specifications Fl
1.98 MHz
Specifications Imax Rms
12.5 A
Specifications Smax
35 kV·A
Specifications Thread
10-32
Specifications Vmax Dc
15 kV
