High Voltage Ceramic Capacitors - EPSL Series
High Voltage Ceramic Capacitors - EPSL Series
SKU:CER-d3e199
High voltage ceramic capacitors designed for precise capacitance needs in rugged applications.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
High Voltage Ceramic Capacitors - EPSL Series
$24.99
Quantity: 1
Claim Your Seller Account
High Voltage Ceramic Capacitors - EPSL Series
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

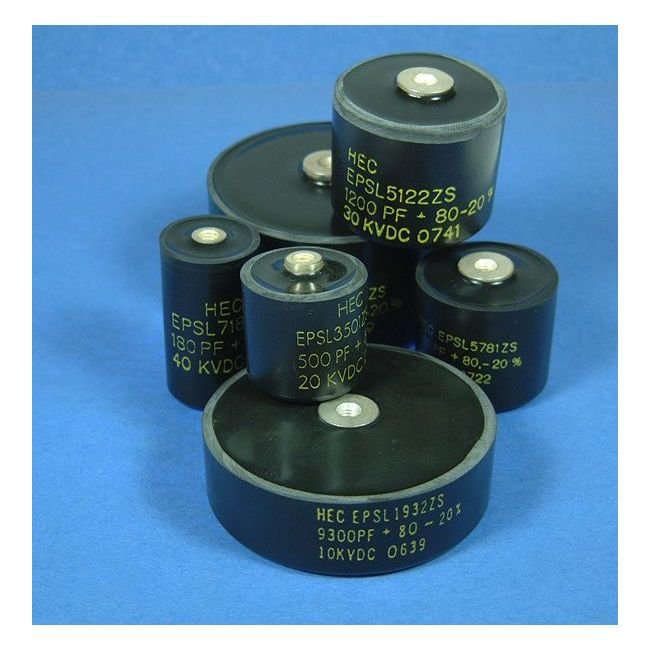

The EPSL Series Ceramic Capacitors are expertly crafted for high voltage DC-blocking applications, offering exceptional capacitance values in a compact design. Encapsulated in rugged epoxy for enhanced durability, these capacitors boast high-torque terminals and a Class II X5U dielectric, ensuring reliable performance in demanding environments. With a capacitance of 2400 pF and a maximum DC voltage of 20 kV, these capacitors excel in operational temperatures ranging from -55 to +85 ºC. Designed with precision and quality in mind, they feature a capacitance tolerance of +80%, -20%, and high insulation resistance to deliver consistent and stable electrical characteristics.
Product Specifications
Specifications Cap
2400 pF
Specifications Capacitance Tolerance
+80%, -20% Standard
Specifications Dielectric Characteristic
Class II X5U (+22%, -56% capacitance change with temperature over -55 ºC to +85 ºC)
Specifications Dielectric Strength
Will withstand a DC potential of 1.5 times VMAX rating for 10 Seconds at 25 ºC
Specifications Dissipation Factor
1.5% Maximum when measured at a frequency of 1 kHz and 25 ºC
Specifications Humidity Protection
Epoxy encapsulated
Specifications Minimum Insulation Resistance At 100 Vdc
20000 MΩ
Specifications Operating Temperature Range
-55 to +85 ºC

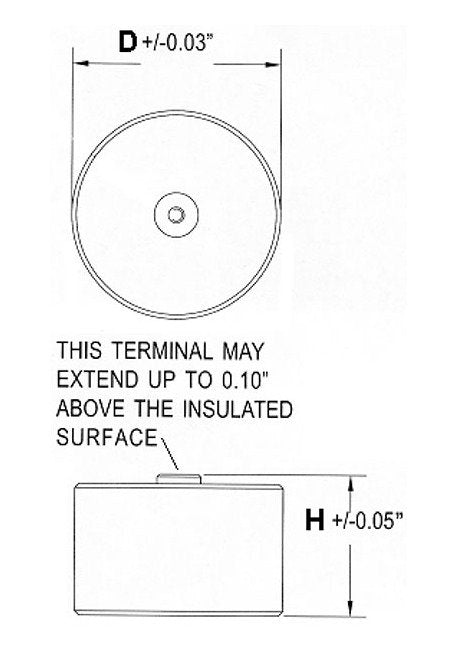

Specifications Physical Depth D
2.08 in
Specifications Physical Height H
1.13 in
Specifications Standard Markings
"HEC", Capacitance, Tolerance, Rated Working Voltage (VDC) and Date Code
Specifications Storage Temperature Range
-55 to +125 ºC

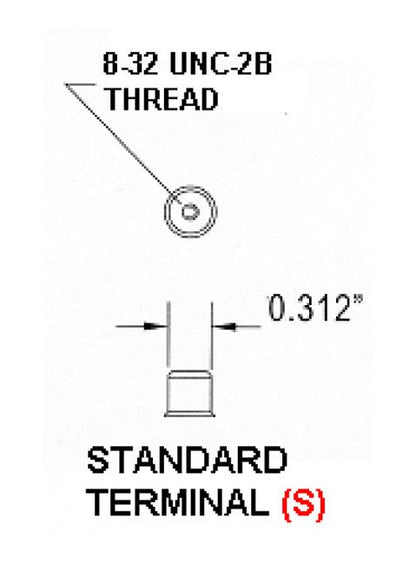

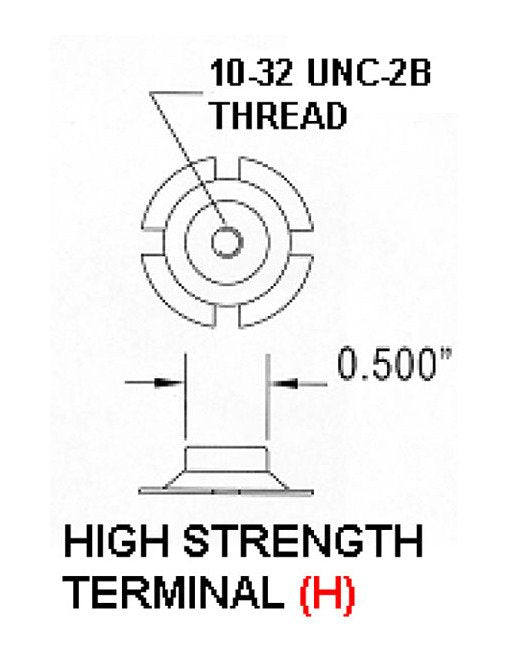

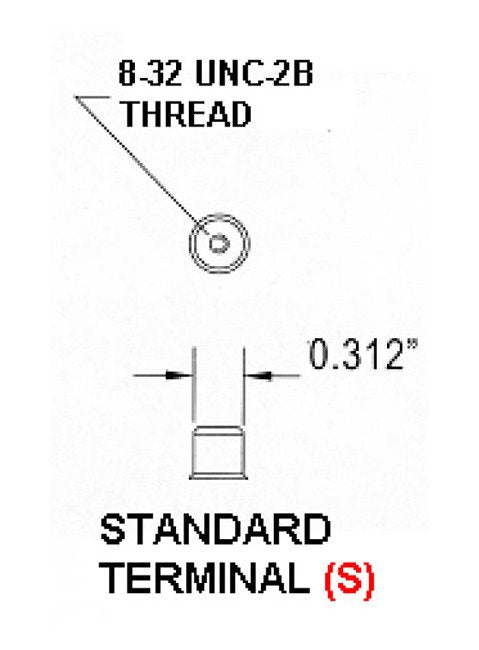

Specifications Terminal H Available
Yes
Specifications Terminal Strength
Maximum applied torque to be 12 inch-pounds or less (standard S terminal)Maximum applied torque to be 25 inch-pounds or less (high-strength H terminal)
Specifications Thread
8-32
Specifications Vmax Dc
20 kV
