High-Voltage Ceramic Capacitors - HT58 Series
High-Voltage Ceramic Capacitors - HT58 Series
SKU:CER-51194b
High-Voltage Ceramic Capacitors with 50 pF capacitance, 7.5 kV VMAX, and N750 dielectric for high-performance applications.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
High-Voltage Ceramic Capacitors - HT58 Series
$24.99
Quantity: 1
Claim Your Seller Account
High-Voltage Ceramic Capacitors - HT58 Series
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The HT58 Series Ceramic Capacitors are designed for high-performance applications requiring reliable capacitance in demanding environments. With a capacitance of 50 pF, VMAX (DC) of 7.5 kV, and Dielectric (TC) of N750, these capacitors offer exceptional electrical properties. Operating at frequencies ranging from 1.13 MHz to 28.1 MHz, they deliver superior performance with a maximum current (IMAX) of 9.4 A and maximum voltage rating (SMAX) of 10 kV·A. The 6-32 UNC-2B threading ensures secure installations, meeting stringent specifications for industrial and government projects.
Product Specifications
Specifications Cap
50 pF
Specifications Dielectric Tc
N750
Specifications Fh
28.1 MHz
Specifications Fl
1.13 MHz
Specifications Imax Rms
9.4 A
Specifications Smax
10 kV·A

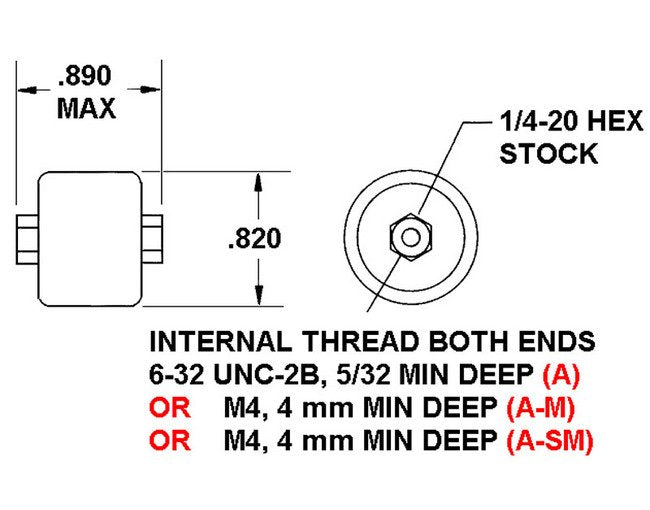

Specifications Thread
6-32 UNC-2B 5/32 min deep
Specifications Vmax Dc
7.5 kV
