High Voltage Ceramic Capacitors - HT59 Series
High Voltage Ceramic Capacitors - HT59 Series
SKU:CER-230446

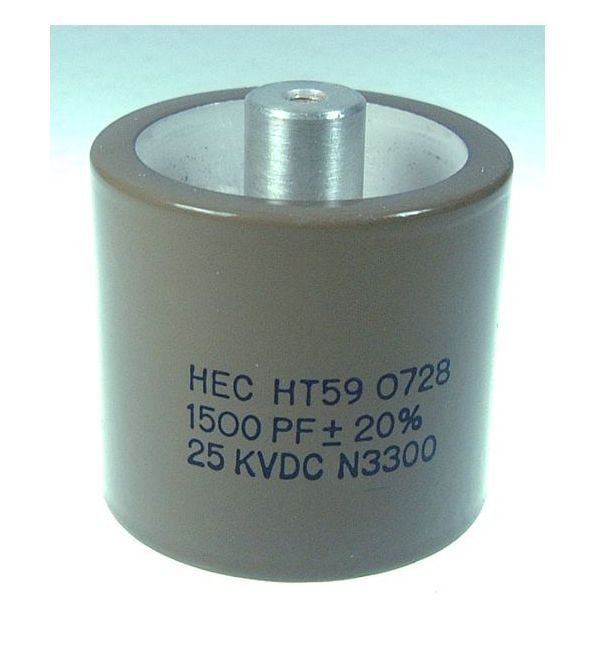

High Voltage Ceramic Capacitors - Perfect for precision applications requiring 25 kVDC working voltage and 50 kVA max power. Choice of four Class I TC's.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
High Voltage Ceramic Capacitors - HT59 Series
$39.99
Quantity: 1
Claim Your Seller Account
High Voltage Ceramic Capacitors - HT59 Series
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

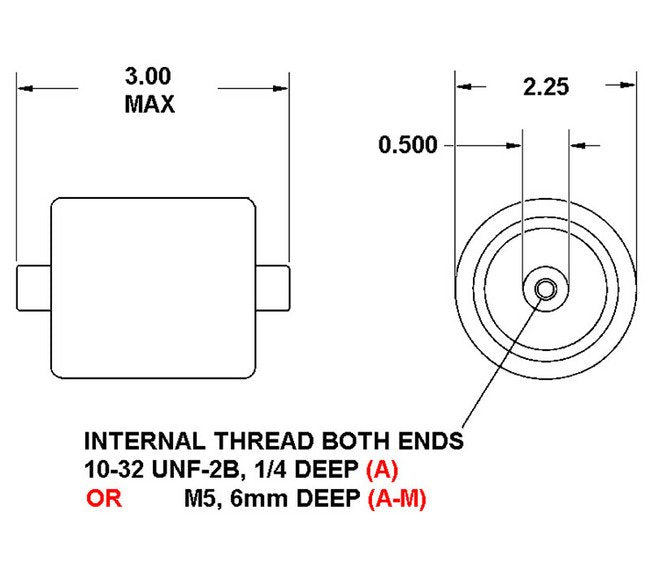

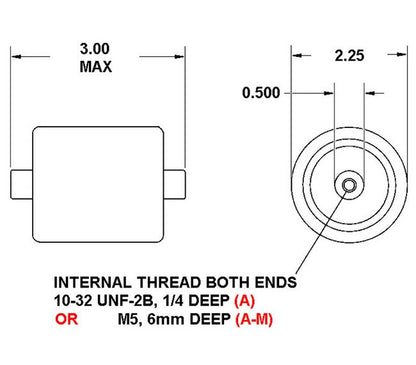

The HT59 Series Ceramic Capacitors offer unparalleled performance with a 25 kVDC Working Voltage and a maximum power rating of 50 kVA. With a capacitance range of 50 to 1500 pF, these capacitors are designed for precision applications. Featuring a diameter of 2.25" and maximum length of 3", the HT59 Series comes in a choice of four Class I TC's, ensuring reliable operation in diverse environments. These capacitors provide exceptional dielectric strength and low loss, making them ideal for critical systems requiring high voltage and precision capacitance.
Product Specifications
Specifications Cap
150 pF
Specifications Dielectric Tc
N750
Specifications Fh
13.9 MHz
Specifications Fl
0.170 MHz
Specifications Imax Rms
25.6 A
Specifications Smax
50 kV·A
Specifications Thread
10-32
Specifications Vmax Dc
25 kV
