High Voltage Ceramic Capacitors - HT59 Series
High Voltage Ceramic Capacitors - HT59 Series
SKU:CER-1e1881
High-performance HT59 Series Ceramic Capacitors - up to 25kVDC, 50 kVA, 50-1500pF capacitance, and Class I TC options
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
High Voltage Ceramic Capacitors - HT59 Series
$59.99
Quantity: 1
Claim Your Seller Account
High Voltage Ceramic Capacitors - HT59 Series
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

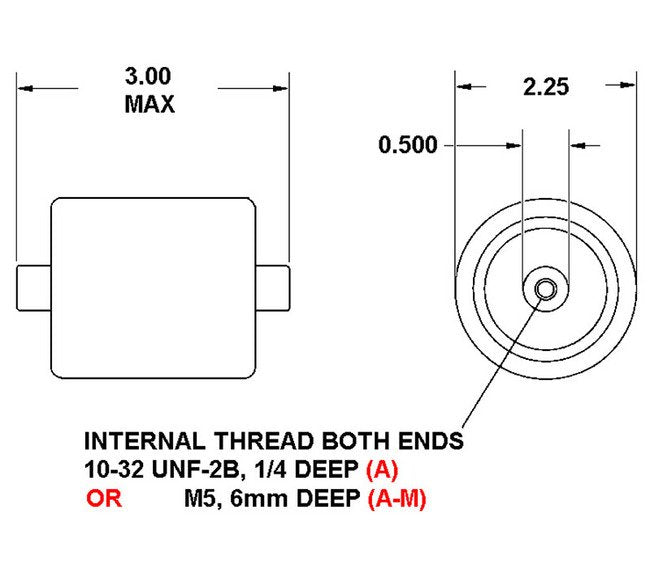

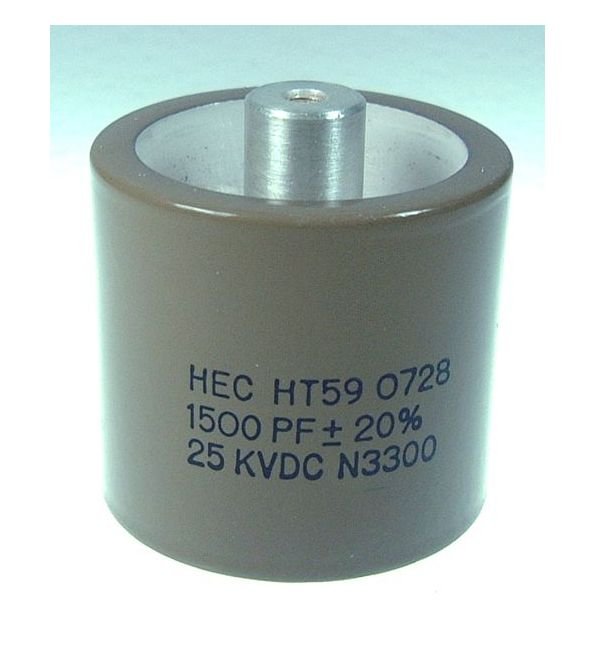

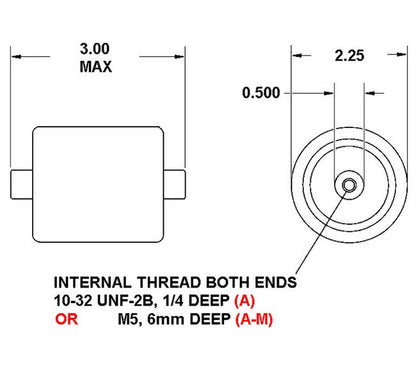

The HT59 Series Ceramic Capacitors offer exceptional performance for high-electrical applications with a durable design to withstand up to 25 kVDC working voltage. With a maximum power of 50 kVA and capacitance ranging from 50 to 1500 pF, these capacitors ensure reliable operation. Featuring a 2.25" diameter x 3" maximum length and a choice of four Class I TCs, they provide flexibility and efficiency in various systems. Ideal for institutional and government procurement, these capacitors are engineered to meet stringent industry standards for superior quality and performance.
Product Specifications
Specifications Cap
1000 pF
Specifications Dielectric Tc
N5250
Specifications Fh
1.99 MHz
Specifications Fl
0.0254 MHz
Specifications Imax Rms
25.0 A
Specifications Smax
50 kV·A
Specifications Thread
10-32
Specifications Vmax Dc
25 kV
