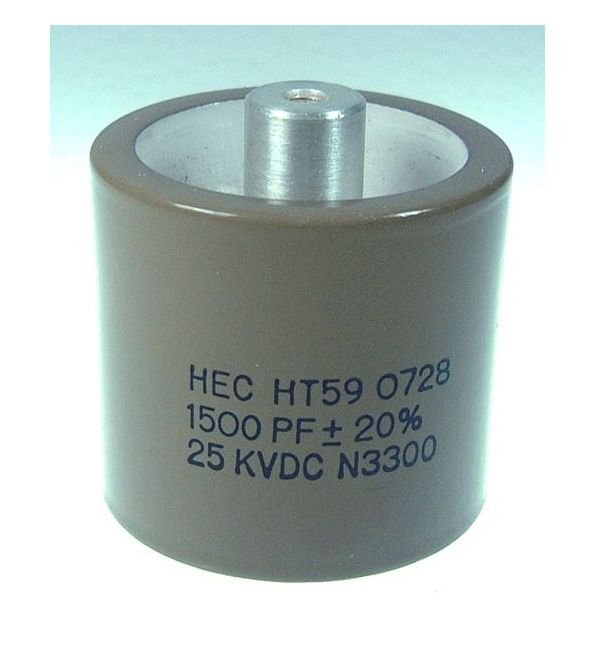

High Voltage Ceramic Capacitors - HT59 Series
High Voltage Ceramic Capacitors - HT59 Series
SKU:CER-d4030e
High Voltage Ceramic Capacitors - 25 kVDC, 50 kVA Max Power, 50-1500 pF Capacitance, Compact Design, Class I TC Options
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
High Voltage Ceramic Capacitors - HT59 Series
$39.99
Quantity: 1
Claim Your Seller Account
High Voltage Ceramic Capacitors - HT59 Series
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

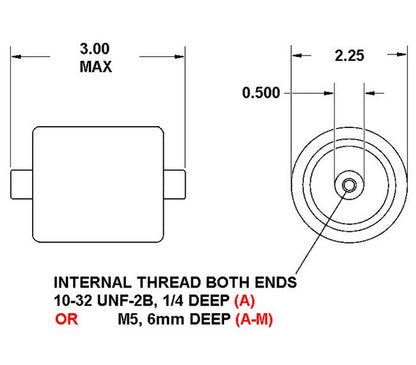

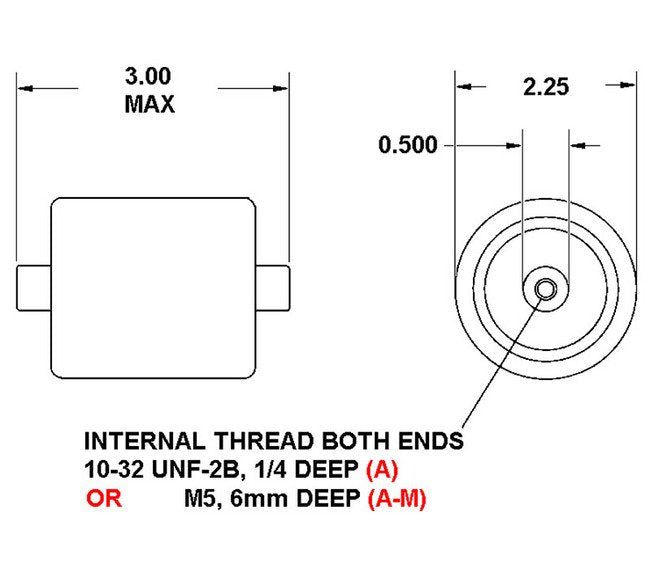

Upgrade your electrical systems with the HT59 Series Ceramic Capacitors, featuring a high 25 kVDC working voltage and a maximum power of 50 kVA. With a capacitance range from 50 to 1500 pF, these capacitors offer superior performance in a compact 2.25" diameter x 3" length design. Choose from four Class I TC options for precise tuning and reliability, making them ideal for demanding industrial applications.
Product Specifications
Specifications Cap
75 pF
Specifications Dielectric Tc
NP0
Specifications Fh
13.6 MHz
Specifications Fl
0.339 MHz
Specifications Imax Rms
17.9 A
Specifications Smax
50 kV·A
Specifications Thread
10-32
Specifications Vmax Dc
25 kV
