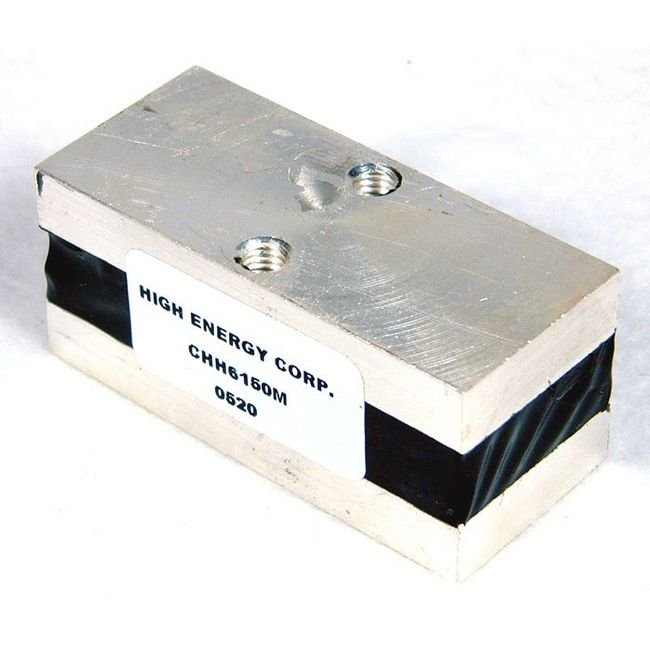

The CHH Series Metallized Film Capacitors are designed for precision performance in high-voltage applications, with a capacitance range of 0.1 to 2.5 µF and a VMAX (RMS) of 500 V. These capacitors offer exceptional power handling capabilities of up to 160 kV·A and can operate at temperatures up to +90 ºC. Featuring conduction-cooling by bus bars, low dissipation factor, and compact dimensions of 68 x 30.2 x 30.2 mm, the CHH series ensures reliable and efficient power management in demanding industrial environments. Compliant with industry standards, these capacitors are ideal for both commercial and institutional procurement needs.
Product Specifications
Specifications Cap
1.2 µF
Specifications Capacitance Range
0.1 to 2.5 µF Standard
Specifications Capacitance Tolerance
±10% Standard
Specifications Cooling Method
Conduction-cooled by bus bars

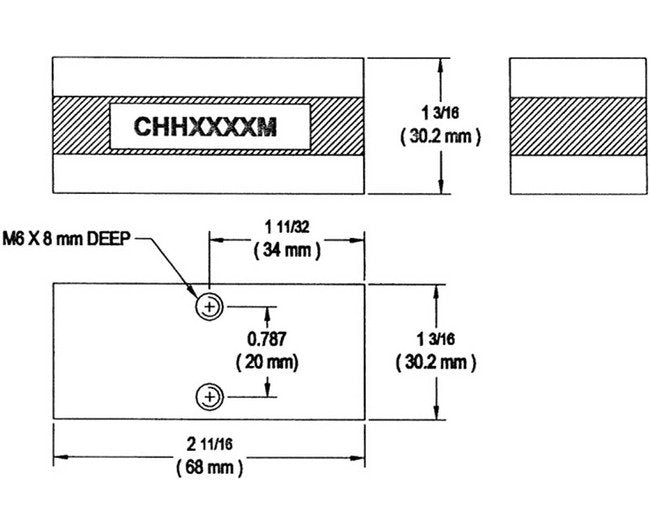

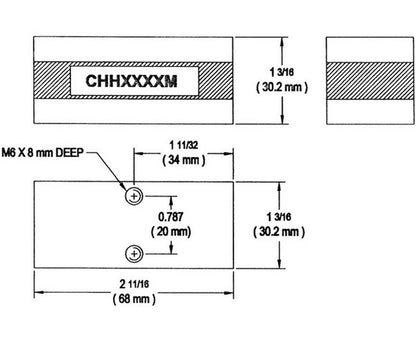

Specifications Dimensions
2 11/16 x 1 3/16 x 1 3/16 in | 68 x 30.2 x 30.2 mm
Specifications Dissipation Factor
0.1% Maximum
Specifications Fh
87 kHz
Specifications Fl
85 kHz
Specifications Fmax
800 kHz
Specifications Imax Rms
325 A
Specifications Operating Temperature
Up to +90 ºC
Specifications Smax
160 kV·A
Specifications Stray Inductance
Less than 5 nH
Specifications Vmax Rms
500 V
Specifications Weight
0.5 kg | 1.1 lb
