High-Voltage CHH Series Metallized Film Capacitors
High-Voltage CHH Series Metallized Film Capacitors
SKU:MET-ae1aec
High-power and high-voltage metallized film capacitors for demanding applications. Operating voltage: 700 VRMS, Power: 160 kVA, Compact Size, Conduction-Cooled.
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
High-Voltage CHH Series Metallized Film Capacitors
$99.99
Quantity: 1
Claim Your Seller Account
High-Voltage CHH Series Metallized Film Capacitors
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

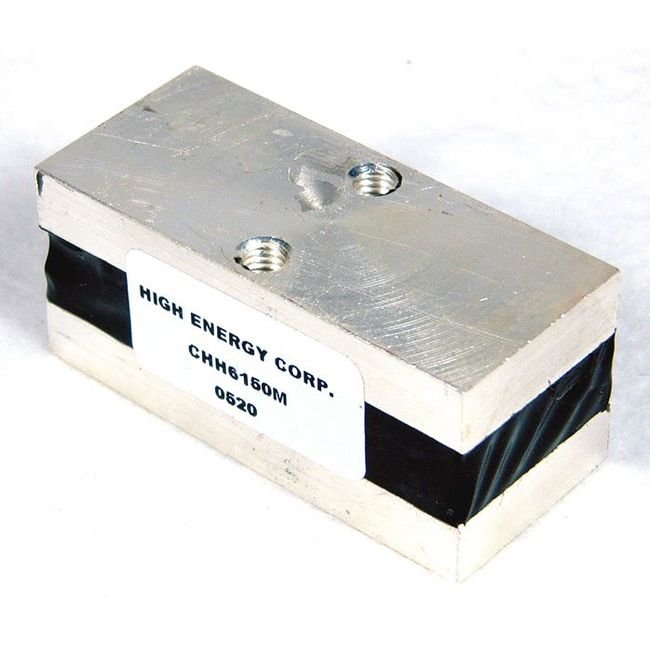

The CHH Series Metallized Film Capacitors are designed to meet the rigorous demands of high-power applications with their impressive attributes including a capacitance range of 0.1 to 2.5 µF, operating voltage of 700 VRMS, and a maximum power of 160 kVA. These capacitors are conduction-cooled by bus bars, ensuring efficient heat dissipation and reliability in demanding environments. With a compact size of 2 11/16 x 1 3/16 x 1 3/16 inches and a weight of 0.5 kg, they are ideal for space-constrained installations. Suitable for series and parallel stacking, these capacitors offer maximum flexibility and scalability for institutional and industrial applications.
Product Specifications
Specifications Cap
0.1 µF
Specifications Capacitance Range
0.1 to 2.5 µF Standard
Specifications Capacitance Tolerance
±10% Standard
Specifications Cooling Method
Conduction-cooled by bus bars

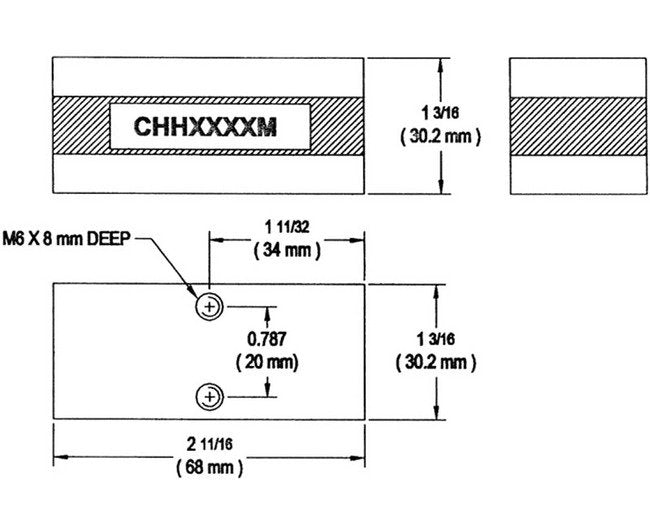

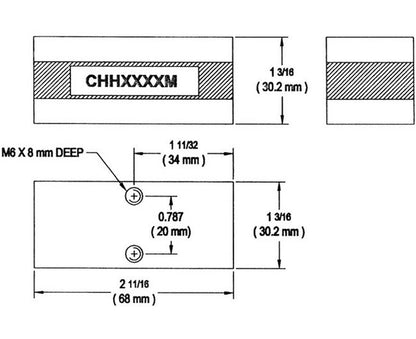

Specifications Dimensions
2 11/16 x 1 3/16 x 1 3/16 in | 68 x 30.2 x 30.2 mm
Specifications Dissipation Factor
0.1% Maximum
Specifications Fh
621 kHz
Specifications Fl
519 kHz
Specifications Fmax
1000 kHz
Specifications Imax Rms
250 A
Specifications Operating Temperature
Up to +90 ºC
Specifications Smax
160 kV·A
Specifications Stray Inductance
Less than 5 nH
Specifications Vmax Rms
700 V
Specifications Weight
0.5 kg | 1.1 lb
