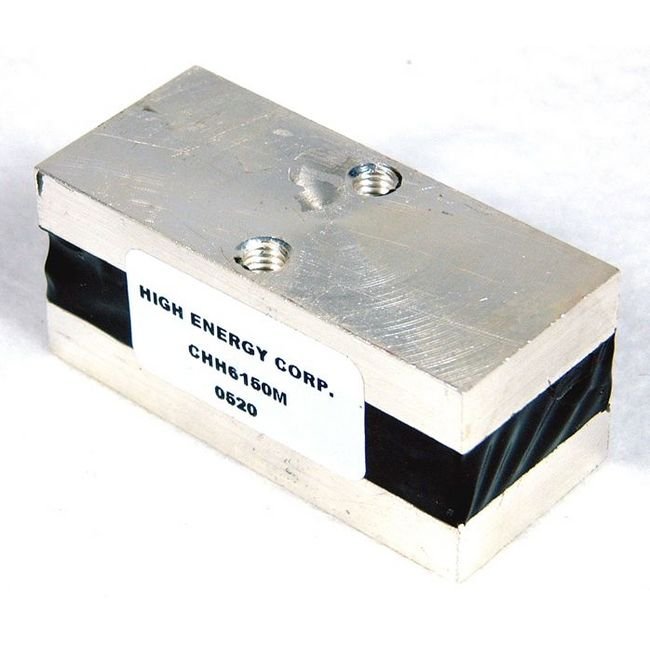

High Voltage CHH Series Metallized Film Capacitors

Name: High Voltage CHH Series Metallized Film Capacitors
Brand: High Energy Corp.
SKU: MET-4dcef8
Price: 129.99 USD
Availability: OutOfStock

SKU:MET-4dcef8

High Voltage Metallized Film Capacitors with 700 VRMS & 160 kVA Max Power, ideal for demanding industrial applications.

$129.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The High Voltage CHH Series Metallized Film Capacitors are designed for demanding applications, offering a maximum working voltage of 700 VRMS and a power handling capability of up to 160 kVA. With a capacitance range of 0.1 to 2.5 µF and high current carrying capacity of 250 A RMS, these capacitors deliver reliable performance in series or parallel setups. Featuring conduction cooling for efficient heat dissipation and compact dimensions of 2 11/16 x 1 3/16 x 1 3/16 inches, they are ideal for diverse industrial settings. These capacitors ensure stable operation with low dissipation factor and minimal stray inductance, meeting stringent industry standards.

Product Specifications

Specifications Cap

0.17 µF

Specifications Capacitance Range

0.1 to 2.5 µF Standard

Specifications Capacitance Tolerance

±10% Standard

Specifications Cooling Method

Conduction-cooled by bus bars

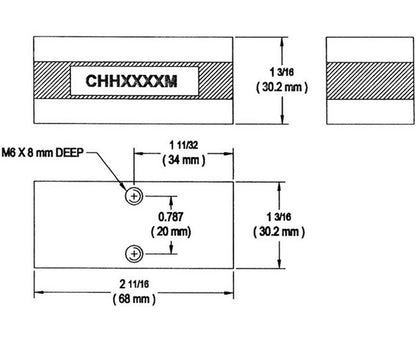

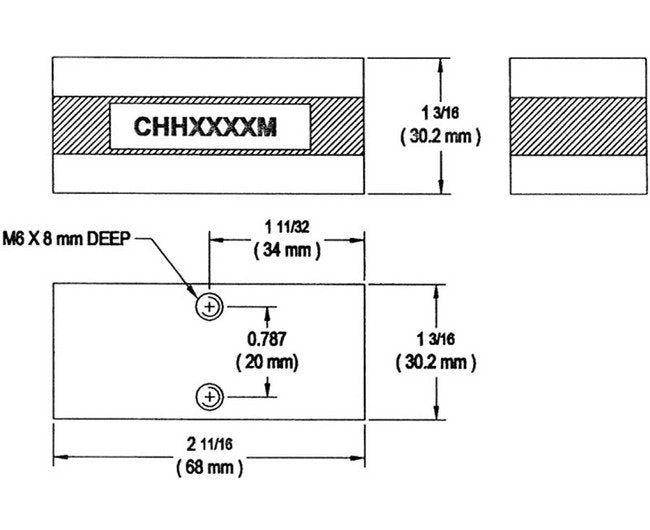

Specifications Dimensions

2 11/16 x 1 3/16 x 1 3/16 in | 68 x 30.2 x 30.2 mm

Specifications Dissipation Factor

0.1% Maximum

Specifications Fh

365 kHz

Specifications Fl

305 kHz

Specifications Fmax

1000 kHz

Specifications Imax Rms

250 A

Specifications Operating Temperature

Up to +90 ºC

Specifications Smax

160 kV·A

Specifications Stray Inductance

Less than 5 nH

Specifications Vmax Rms

700 V

Specifications Weight

0.5 kg | 1.1 lb
