High-Voltage CHL Series Metallized Film Capacitors
High-Voltage CHL Series Metallized Film Capacitors
SKU:MET-8c55b6
High-Voltage Metallized Film Capacitors for reliable and efficient high-power applications. Stackable and conduction cooled. Capacitance range 0.1-2.5 µF.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
High-Voltage CHL Series Metallized Film Capacitors
$49.99
Quantity: 1
Claim Your Seller Account
High-Voltage CHL Series Metallized Film Capacitors
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

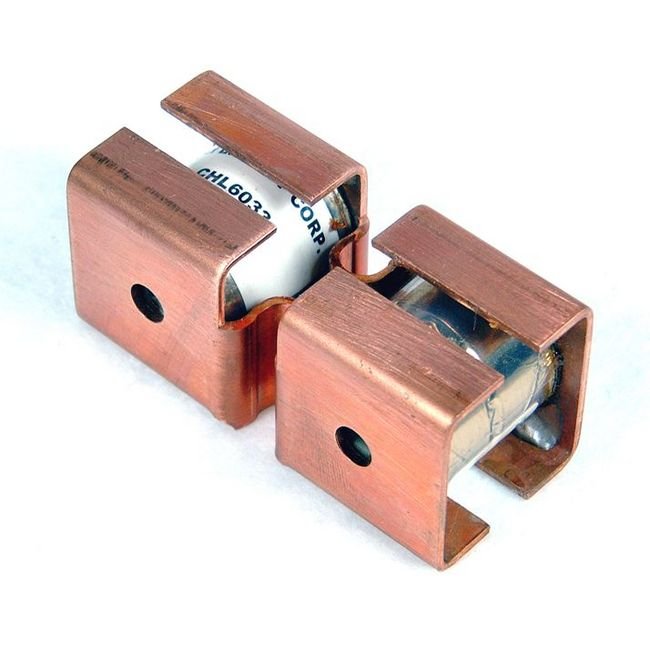

The CHL Series Metallized Film Capacitors are engineered to deliver exceptional performance in high-voltage applications. With a working voltage of up to 700 VRMS and a maximum power handling capacity of 160 kVA, these capacitors ensure reliable and efficient operation. They are conduction cooled and stackable in series & parallel configurations, offering versatility in various setups. With a capacitance range of 0.1 to 2.5 µF and stringent specifications like ±10% capacitance tolerance, these capacitors provide precise and stable electrical characteristics. Operating temperatures up to +90 ºC and conduction cooling via bus bars ensure optimal performance even under demanding conditions. The compact dimensions and lightweight design make them ideal for space-constrained applications.
Product Specifications
Specifications Cap
0.1 µF
Specifications Capacitance Range
0.1 to 2.5 µF Standard
Specifications Capacitance Tolerance
±10% Standard
Specifications Cooling Method
Conduction-cooled by bus bars

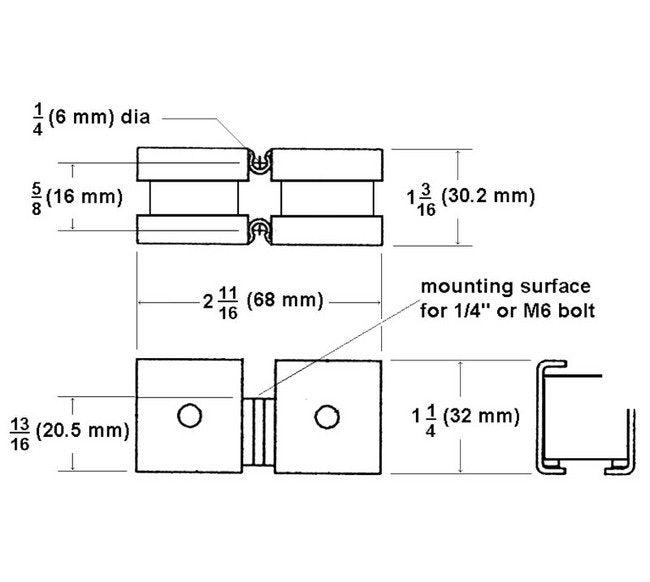

Specifications Dimensions
2 11/16 x 1 1/4 x 1 3/16 in | 68 x 32 x 30.2 mm
Specifications Dissipation Factor
0.1% Maximum
Specifications Fh
621 kHz
Specifications Fl
519 kHz
Specifications Fmax
1000 kHz
Specifications Imax Rms
250 A
Specifications Operating Temperature
Up to +90 ºC
Specifications Smax
160 kV·A
Specifications Stray Inductance
Less than 5 nH
Specifications Vmax Rms
700 V
Specifications Weight
0.5 kg | 1.1 lb
