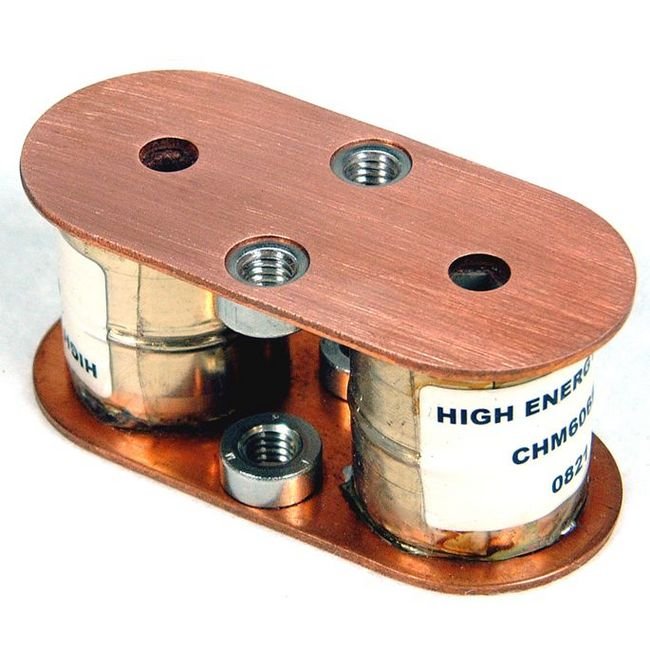

High Voltage CHM Series Metallized Film Capacitors
High Voltage CHM Series Metallized Film Capacitors
SKU:MET-52c903
Reliable CHM Series capacitors with 700V max voltage, 160kVA power, 0.33µF capacitance, conduction-cooled design.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
High Voltage CHM Series Metallized Film Capacitors
$49.99
Quantity: 1
Claim Your Seller Account
High Voltage CHM Series Metallized Film Capacitors
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The CHM Series Metallized Film Capacitors offer exceptional performance with a capacitance range of 0.1 to 2.5 µF and a maximum working voltage of 700 V. With a maximum power rating of 160 kVA and a conduction-cooled design that allows for series and parallel stacking, these capacitors ensure reliable operation even in demanding applications. Weighing just 0.5 kg, these capacitors are compact and lightweight, making them ideal for space-constrained installations. The high-temperature operating capability of up to +90ºC, low dissipation factor of 0.1%, and minimal stray inductance of less than 5 nH make them highly efficient and dependable for a wide range of industrial and institutional applications.
Product Specifications
Specifications Cap
0.33 µF
Specifications Capacitance Range
0.1 to 2.5 µF Standard
Specifications Capacitance Tolerance
±10% Standard
Specifications Cooling Method
Conduction-cooled by bus bars

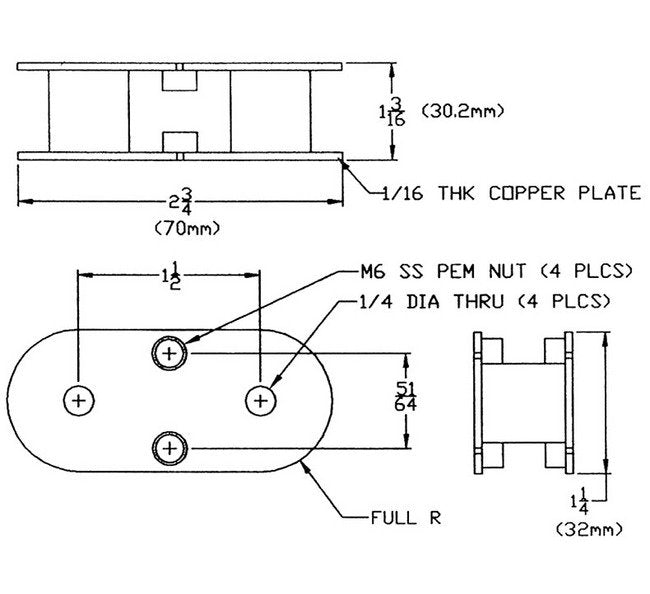

Specifications Dimensions
2 3/4 x 1 1/4 x 1 3/16 in | 70 x 32 x 30.2 mm
Specifications Dissipation Factor
0.1% Maximum
Specifications Fh
228 kHz
Specifications Fl
157 kHz
Specifications Fmax
800 kHz
Specifications Imax Rms
275 A
Specifications Operating Temperature
Up to +90 ºC
Specifications Smax
160 kV·A
Specifications Stray Inductance
Less than 5 nH
Specifications Vmax Rms
700 V
Specifications Weight
0.5 kg | 1.1 lb
