High Voltage Coaxial Cable Assembly
High Voltage Coaxial Cable Assembly
SKU:HIG-9ba955
Reliable Series 31 High Voltage Coaxial Cable Assembly for secure connectivity in high-voltage applications. Sea level rated with brass coupling nut for durability.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
High Voltage Coaxial Cable Assembly
$59.99
Quantity: 1
Claim Your Seller Account
High Voltage Coaxial Cable Assembly
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

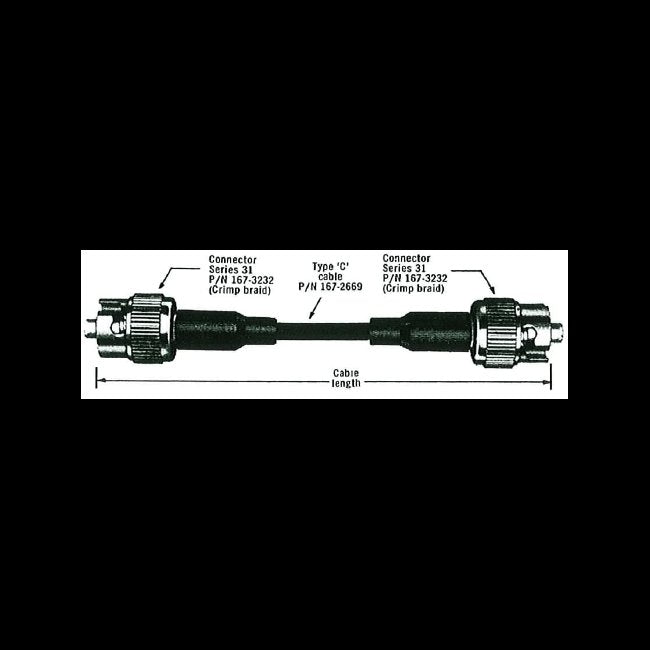

The High Voltage Coaxial Cable Assembly in Series 31 offers reliable connectivity since 1950. With a double-ended plug design and sea level rating, this assembly ensures secure mating with all Series 311 Cond. 1 connectors and adaptors. Operating at -40 to 85 °C with a voltage rating of 6.5 kVDC, it is ideal for high-voltage applications. The brass coupling nut with gold plating enhances durability and conductivity.
Product Specifications
Body Properties Coupling Nut Finish
Gold Plated
Body Properties Coupling Nut Material
Brass
Specifications Altitudereduced Pressure Rating
Sea Level
Specifications Assembly Type
Double-Ended Plug Cable Assembly
Specifications Coupling Style
Bayonet
Specifications Current Rating
10 Amp
Specifications End 1
1673232
Specifications Export Classification
TBD
Specifications Mating Compatibility
Mates all Series 311 Cond. 1 receptacles and adaptors.
Specifications Operating Temperature
-40 to 85 ºC
Specifications Polarization
Cond. 1
Specifications Rohs Compliant
TBD
Specifications Sealed Receptacle
N/A
Specifications Series
31
Specifications Standardnon Standard
Standard Part
Specifications Test Voltage
TBD
Specifications Voltage Rating
6.5 kVDC
