High Voltage Coaxial Cable Assembly | 6.5 & 15 kVDC - Series 31, 310, 311 Connectors
High Voltage Coaxial Cable Assembly | 6.5 & 15 kVDC - Series 31, 310, 311 Connectors
SKU:HIG-6fcc69
Reliable High Voltage Coaxial Cable Assembly with brass coupling nut material & gold-plated finish. Sea level rated, 10 Amp current rating, mates with Series 311 Cond. 1 connectors.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
High Voltage Coaxial Cable Assembly | 6.5 & 15 kVDC - Series 31, 310, 311 Connectors
$59.99
Quantity: 1
Claim Your Seller Account
High Voltage Coaxial Cable Assembly | 6.5 & 15 kVDC - Series 31, 310, 311 Connectors
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

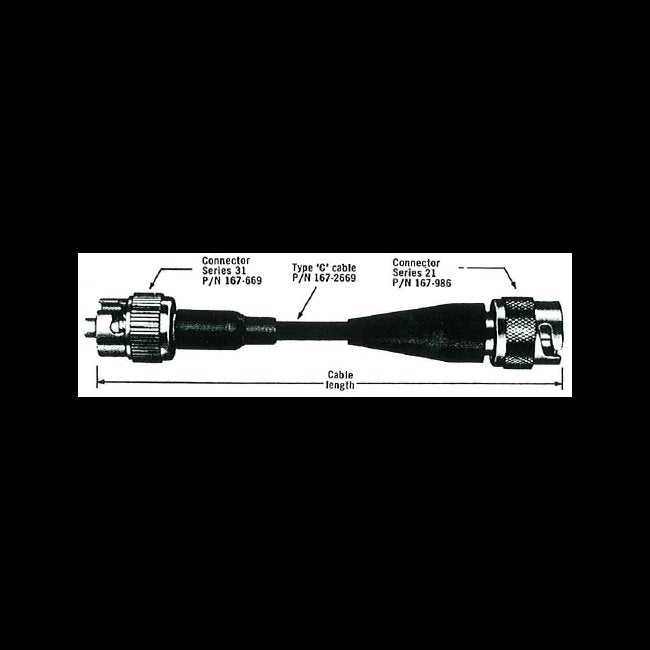

The High Voltage Coaxial Cable Assembly features a durable design with brass coupling nut material and gold-plated finish, ensuring reliable performance in demanding environments. With a sea level rating and a test voltage of 7.5 kVDC for 15 sec., this cable assembly excels in conductivity and safety. It mates seamlessly with all Series 311 Cond. 1 connectors and adaptors, offering a current rating of 10 Amp. Ideal for institutional applications, this double-ended plug-receptacle assembly is available as kits and cable assemblies.
Product Specifications
Body Properties Coupling Nut Finish
Gold Plated
Body Properties Coupling Nut Material
Brass
Specifications Altitudereduced Pressure Rating
Sea Level
Specifications Assembly Type
Double-Ended Plug - Receptacle Cable Assembly
Specifications Coupling Style
Bayonet
Specifications Current Rating
10 Amp
Specifications Export Classification
TBD
Specifications Mating Compatibility
Mates all Series 311 Cond. 1 receptacles and adaptors.
Specifications Operating Temperature
-40 to 85 ºC
Specifications Polarization
Cond. 1
Specifications Rohs Compliant
TBD
Specifications Sealed Receptacle
No
Specifications Series
31
Specifications Standardnon Standard
Standard Part
Specifications Test Voltage
7.5 kVDC for 15 sec.
Specifications Voltage Rating
6.5 kVDC
