High Voltage Coaxial Shielded Cable - 26 AWG
High Voltage Coaxial Shielded Cable - 26 AWG
SKU:HIG-cffd6d
Reliable High Voltage Coaxial Shielded Cable with silver-plated conductor for military and industrial applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
High Voltage Coaxial Shielded Cable - 26 AWG
$29.99
Quantity: 1
Claim Your Seller Account
High Voltage Coaxial Shielded Cable - 26 AWG
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

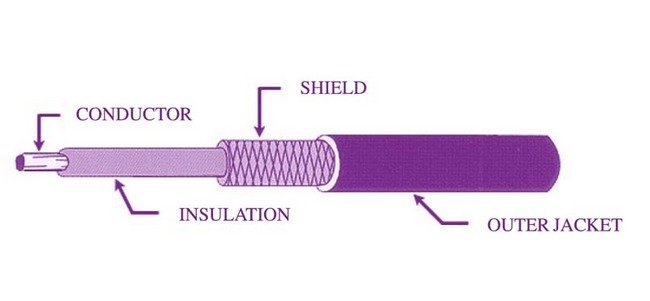

The High Voltage Coaxial Shielded Cable is a reliable solution for military and industrial high voltage applications. Featuring a silver-plated copper conductor with controlled impedance, this cable ensures fast response times and optimal performance. With a voltage rating of 18 kVDC and FEP insulation for lower capacitance and higher impedance, it meets rigorous standards for radar, ECM systems, power supplies, and instrumentation. Ideal for connecting detonators to discharge units and cockpit displays, this cable guarantees safety and efficiency in high voltage interconnections.
Product Specifications
Cable Wire Properties Etched
No
Cable Wire Properties Nomex Jacketed
Yes
Cable Wire Properties Silicone Coated
No
Cable Wire Properties Twisted Pair
No
Cable Wire Properties Twisted Shielded Pair
No
Cable Wire Properties Wire Type
Shielded
Shielding Properties Shielding Layers
1
Shielding Properties Shielding Strands
36 AWG
Shielding Properties Shielding Strand Plating
Silver Plated Copper
Specifications Attenuation At 400 Mhz
25 db/100 ft
Specifications Capacitance At 1k Hz
33.7 pF/ft
Specifications Conductor Diameter
0.019 in | 0.095 in
Specifications Conductor Gauge
26 AWG
Specifications Conductor Material
Copper
Specifications Conductor Plating
Silver Plated
Specifications Conductor Strands
19/38
Specifications Default Color
Natural
Specifications Diameter Over Insulation
0.050 in
Specifications Diameter Over Jacket
0.095 in
Specifications Diameter Over Shield
0.075 in
Specifications Impedance
46 Ω
Specifications Insulator Material
FEP
Specifications Jacket Material
FEP
Specifications Operating Temperature
-55 to 125 ºC
Specifications Overall Diameter
0.095 in
Specifications Standardnon Standard
Standard Part
Specifications Voltage Rating
18 kVDC
Specifications Wire Insulation
"L"
