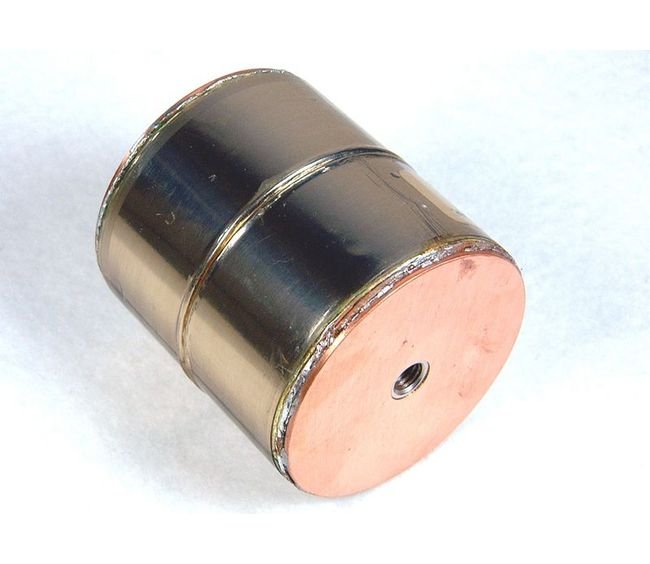

The CHN0 Series Metallized Film Capacitors offer exceptional performance for high-voltage applications, with a working voltage of up to 600 VRMS and a maximum power of 250 kVA. Designed to handle currents of up to 600 ARMS, these capacitors are conduction-cooled for efficient operation. With a capacitance range of 1.4 to 10 µF and a compact design, they are suitable for a wide range of industrial and institutional uses. Operating temperature of up to +90 ºC ensures reliable performance in various environments. The capacitors meet stringent industry standards for quality and durability, making them ideal for government and institutional procurement needs.
Product Specifications
Specifications Cap
10 µF
Specifications Capacitance Range
1.4 to 10 µF
Specifications Capacitance Tolerance
±10% Standard
Specifications Cooling Method
Conduction-cooled by bus bars
Specifications Dissipation Factor
0.1% Maximum
Specifications Fh
23 kHz
Specifications Fl
11 kHz
Specifications Fmax
70 kHz

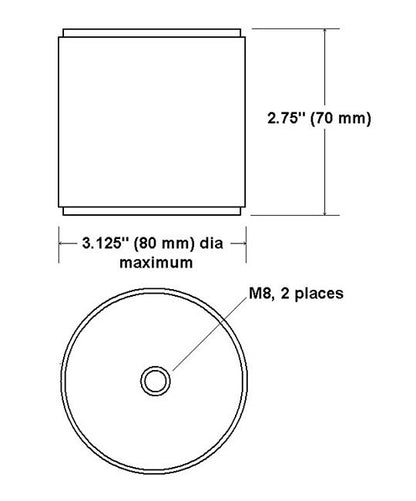

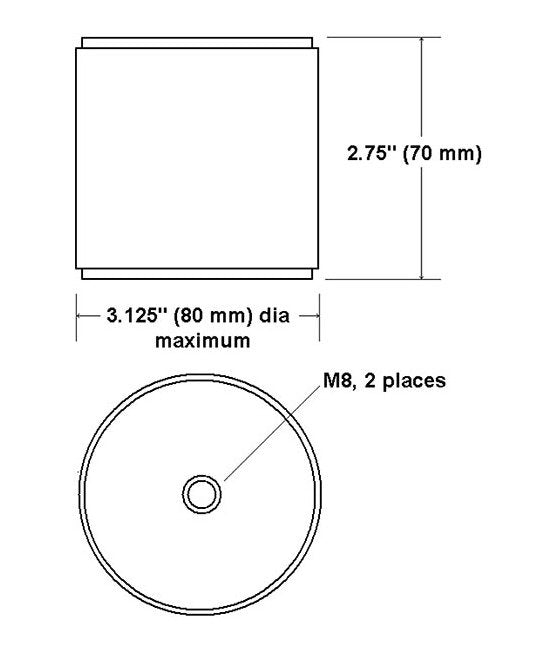

Specifications Height
2 3/4 in | 70 mm
Specifications Imax Rms
600 A
Specifications Max Diameter
3 1/8 in | 80 mm
Specifications Operating Temperature
Up to +90 ºC
Specifications Smax
250 kV·A
Specifications Stray Inductance
Less than 5 nH
Specifications Vmax Rms
600 V
Specifications Weight
0.75 kg | 1.7 lb
