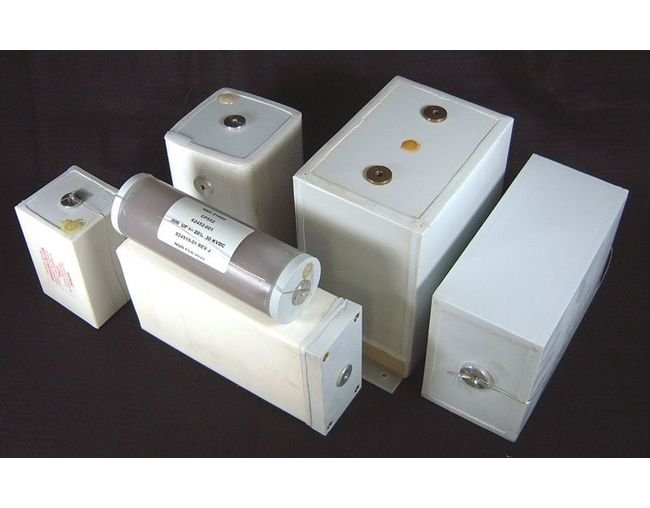

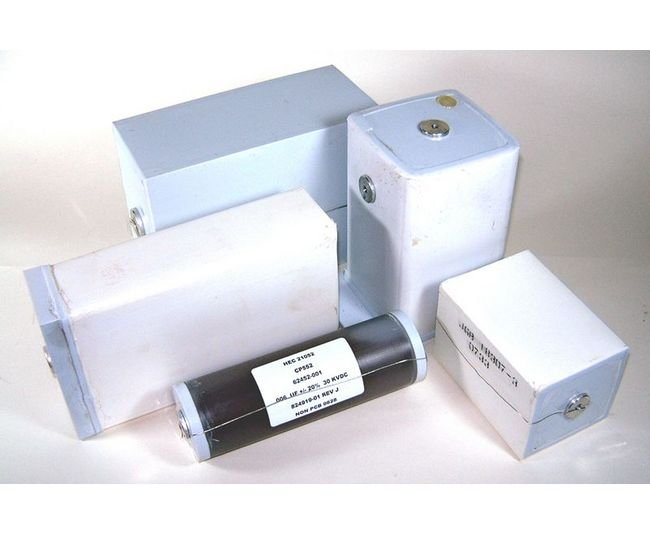

The CP Series Oil-Filled Capacitors are meticulously engineered for reliable performance in high voltage applications. With a capacitance range of 0.01 to 1 µF and a voltage rating of up to 20,000 VDC, these capacitors feature welded polypropylene cases for durability. Operating within a wide temperature range of -40 to +90 ºC, they offer superior insulation resistance and efficient filtering capabilities. The dielectric material, a blend of kraft paper and polypropylene, ensures long-term stability. Trusted by industries requiring precision and durability, these capacitors exceed standard quality expectations.
Product Specifications
Specifications Ac Ripple Voltage
The sum of the DC voltage and peak AC ripple should not exceed the capacitor's VDC rating.Additionally, the AC component should not exceed:20 % of VDC at 60 Hz10 % of VDC at 400 Hz5 % of VDC at 1 kHz1% of VDC at 10 kHz
Specifications Cap
1 µF
Specifications Capacitance Range
0.01 to 1 µF
Specifications Capacitance Tolerance
±10% Standard
Specifications Case Construction
Welded Polypropylene Plastic
Specifications Dielectric
Kraft paper and polypropylene with environmentally compatible impregnant

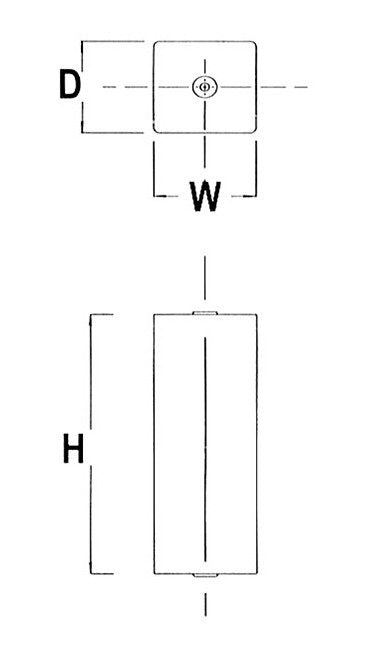

Specifications Dimension D
5.00
Specifications Dimension H
9
Specifications Dimension W
7.88
Specifications Insulation Resistance At 25c Typical
25000 MΩ
Specifications Operating Temperature
-40 to +90 ºC
Specifications Voltage Dc
20000 V
