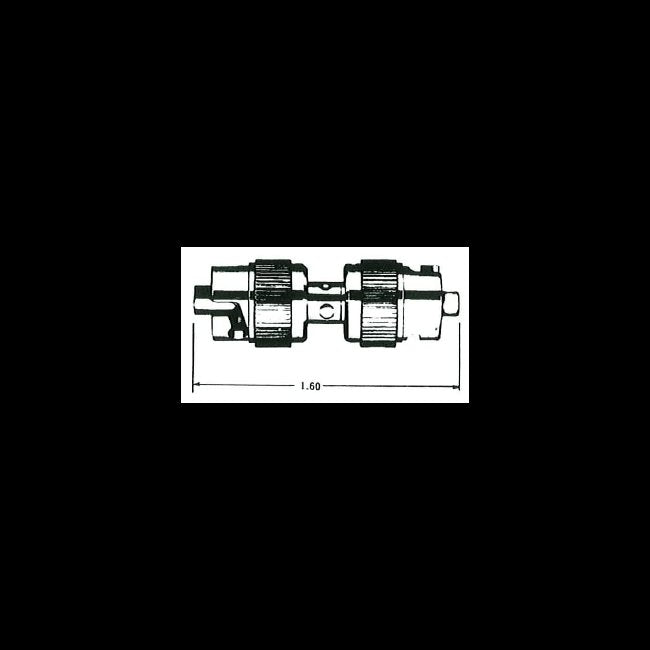

High Voltage Double End Female Adaptor - Series 31/311
High Voltage Double End Female Adaptor - Series 31/311
SKU:HIG-dcb5ed
High Voltage Double End Female Adaptor - Series 31/311, Sea Level Altitude Rating, 10A, 6.5kVDC
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
High Voltage Double End Female Adaptor - Series 31/311
$49.99
Quantity: 1
Claim Your Seller Account
High Voltage Double End Female Adaptor - Series 31/311
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The High Voltage Double End Female Adaptor is a durable and reliable solution for high voltage applications. Featuring a Double-Ended Adapter assembly type and a Sea Level Altitude/Reduced Pressure Rating, this adaptor is designed to meet the rigorous demands of Series 31/311 Coaxial Connectors. With a current rating of 10 Amp and a voltage rating of 6.5 kVDC, this adaptor ensures optimal performance in varied operating conditions. The brass coupling nut material with gold plating and beryllium copper contact material guarantee secure connections and longevity.
Product Specifications
Body Properties Coupling Nut Finish
Gold Plated
Body Properties Coupling Nut Material
Brass
Contact Properties Contact Material
Beryllium Copper
Specifications Altitudereduced Pressure Rating
Sea Level
Specifications Assembly Type
Double-Ended Adapter
Specifications Coupling Style
Bayonet
Specifications Current Rating
10 Amp
Specifications Export Classification
TBD
Specifications Mating Compatibility
Mates all Series 311 Cond. 1 receptacles and adaptors.
Specifications Operating Temperature
-40 to 85 ºC
Specifications Polarization
Cond. 1
Specifications Rohs Compliant
TBD
Specifications Sealed Receptacle
No
Specifications Series
31
Specifications Standardnon Standard
Non-standard Part
Specifications Test Voltage
7.5 kVDC for 15 sec.
Specifications Voltage Rating
6.5 kVDC
