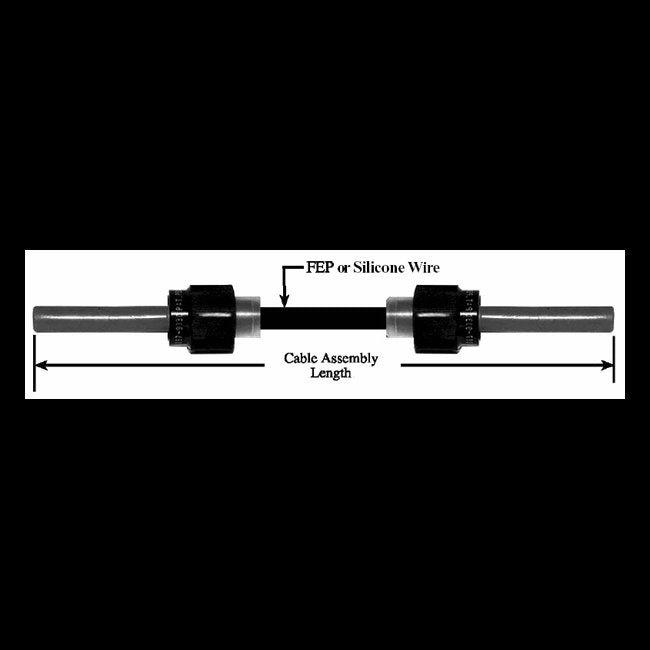

The High Voltage Double-Ended Cable Assembly in the Series 727 line is a critical component for high-reliability applications requiring superior performance in extreme conditions. With a voltage rating of 25 kVDC and a current rating of 10 Amp, this non-standard part is designed for durability and functionality at altitudes up to 70,000 ft. The threaded coupling style ensures secure connections, while the compatibility with LGH 1LI series receptacles and Reynolds C727 receptacle RC1535 expands its usability, making it a versatile solution for demanding environments.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Body Properties Coupling Nut Material
Plastic
Specifications Altitudereduced Pressure Rating
70,000 ft.
Specifications Assembly Type
Double-Ended Plug Cable Assembly
Specifications Coupling Style
Threaded
Specifications Current Rating
10 Amp | 2.5 Amp
Specifications Export Classification
TBD
Specifications Lgh Compatibility
LGH 1LI
Specifications Mating Connectors
Mates all series 727 receptacles and all LGH 1LI series receptacles. Also mates Reynolds C727 receptacle RC1535 ; this combination will reduce the upper operating temperature from +125ºC to +95ºC
Specifications Operating Temperature
-55 to 125 ºC
Specifications Rohs Compliant
TBD
Specifications Sealed Receptacle
N/A
Specifications Series
727
Specifications Standardnon Standard
Non-standard Part
Specifications Test Voltage
25 kVDC at 70,000 ft. (simulated) at ambient temperature
Specifications Voltage Rating
25 kVDC
