High Voltage Double-Ended Cable Assembly, 15 kVDC
High Voltage Double-Ended Cable Assembly, 15 kVDC
SKU:HIG-144570
High Voltage Cable Assembly, 15 kVDC, Threaded Coupling, RoHS Compliant, LGH™ Compatible
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
High Voltage Double-Ended Cable Assembly, 15 kVDC
$49.99
Quantity: 1
Claim Your Seller Account
High Voltage Double-Ended Cable Assembly, 15 kVDC
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Series C 737 Cable Assembly Non-Positive Stop (washers) Double-Ended, Shielded is a reliable high voltage solution designed for demanding applications. With a current rating of 10A and a voltage rating of 15 kVDC, this cable assembly ensures secure connections in diverse environments. Crafted with insulator material made of plastic and contact material of BeCu with CRES hood, this assembly guarantees durability and performance. Its threaded coupling style and sealed receptacle make installation hassle-free, while being RoHS compliant and LGH™ compatible adds to its versatility. Suitable for institutional and government use, it meets various industry standards and specifications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Contact Properties Contact Finish
Gold
Contact Properties Contact Material
BeCu with CRES hood

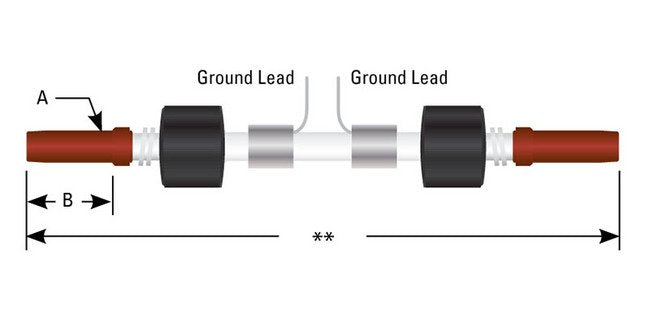

Dimensions A Diameter
.191 in | 4.85 mm
Dimensions B
.89 in | 22.6 mm
Specifications Altitudereduced Pressure Rating
70,000 ft.
Specifications Assembly Type
Double-Ended Plug Cable Assembly
Specifications Coupling Style
Threaded
Specifications Current Rating
10 A
Specifications Export Classification
TBD
Specifications Insulator Material
Plastic
Specifications Lgh Compatibility
LGH 1/2I
Specifications Mating Compatibility
All C 737 lead assembliesAll series 737 lead assembliesAll LGH 1/2I lead assemblies
Specifications Operating Temperature
-55 to 95 ºC
Specifications Rohs Compliant
TBD
Specifications Sealed Receptacle
N/A
Specifications Series
C 737
Specifications Standardnon Standard
Standard Part
Specifications Test Voltage
18 kVDC
Specifications Voltage Rating
15 kVDC
Specifications Wire Insulation
White 0.160 Dia. silicone rubber, #AWG 16
