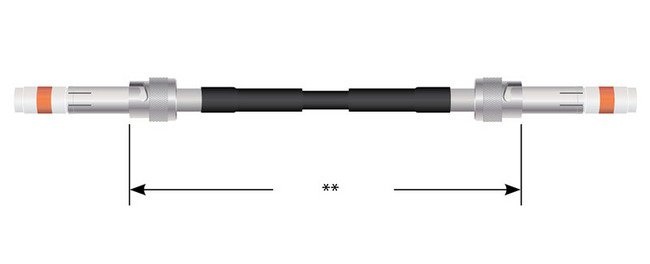

High Voltage Double-Ended Cable Assembly - 25 kVDC, Series 521
High Voltage Double-Ended Cable Assembly - 25 kVDC, Series 521
SKU:HIG-b74cf7
High-voltage double-ended cable assembly with recessed contacts for user safety, 25 kVDC rating, and bayonet coupling style.
Regular price
$149.99
Regular price
Sale price
$149.99
Unit price
per
Initiate Order
High Voltage Double-Ended Cable Assembly - 25 kVDC, Series 521
$149.99
Quantity: 1
Claim Your Seller Account
High Voltage Double-Ended Cable Assembly - 25 kVDC, Series 521
$149.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 521 Series Cable Assembly, Double-Ended is a high-voltage connector designed for maximum user safety in high-risk environments. Featuring recessed contacts that mitigate electrical shock risks, this assembly offers reliable ground circuits and safe operation in temperatures ranging from -40 to 85 °C. With a bayonet coupling style and crimp braid termination, this shielded assembly ensures secure connections at altitudes up to 70,000 ft. The plug contact material is BeCu/Au, providing durability and conductivity while meeting voltage ratings of 25 kVDC. Tested at 41 kVDC at 70,000 ft., this assembly guarantees performance and safety in critical applications.
Product Specifications
Coupling Nut Properties Bayonet Coupling Nut Finish
Nickel
Coupling Nut Properties Bayonet Coupling Nut Material
Brass
Specifications Altitudereduced Pressure Rating
70,000 ft.
Specifications Assembly Type
Double-Ended Plug Cable Assembly
Specifications Braid Termination
Crimp
Specifications Coupling Style
Bayonet
Specifications Current Rating
20 A
Specifications Export Classification
TBD
Specifications Operating Temperature
-40 to 85 ºC
Specifications Plug Contact Materialfinish
BeCu/Au
Specifications Plug Insulator Material
Plastic
Specifications Rohs Compliant
TBD
Specifications Sealed Receptacle
N/A
Specifications Series
521
Specifications Test Voltage 70000 Ft
41
Specifications Test Voltage At Sea Level
28 kVDC
Specifications Voltage Rating
25 kVDC
Specifications Wire Insulation
PE
Specifications Wire Type
Shielded
