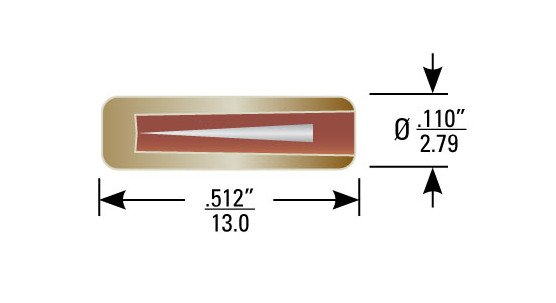

High Voltage Double-Ended Plug Adapter - PeeWee Series 12 kVDC
High Voltage Double-Ended Plug Adapter - PeeWee Series 12 kVDC
SKU:HIG-d69c33
Reliable high voltage adapter for dense electronic packaging, rated at 12 kVDC, altitude up to 70,000 ft, -55°C to 125°C range, silicone rubber encapsulation.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
High Voltage Double-Ended Plug Adapter - PeeWee Series 12 kVDC
$39.99
Quantity: 1
Claim Your Seller Account
High Voltage Double-Ended Plug Adapter - PeeWee Series 12 kVDC
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The High Voltage Double-Ended Plug Adapter from the PeeWee Series is designed for high voltage applications requiring compact connectors. Utilizing Teledyne Reynold's patented Advanced Interface™ method, this connector offers reliable sealing at 12 kVDC in altitudes of up to 70,000 feet. With a temperature range of -55°C to 125°C, it ensures optimal performance in diverse environments. Encapsulated with silicone rubber at the back end, this adapter ensures durability and safety. Ideal for lasers, photomultipliers, power supplies, and TWT applications.
Product Specifications
Application 0
LasersPhotomultipliersPower SuppliesTWT
Contact Properties Contact Diameter
0.030 in | 0.762 mm
Contact Properties Contact Size
24 AWG
Specifications Altitudereduced Pressure Rating
70,000 ft.
Specifications Assembly Type
Double-Ended Plug Adapter
Specifications Current Rating
1.6 Amp
Specifications Encapsulation
Back end of connector is encapsulated with silicone rubber
Specifications Export Classification
TBD
Specifications Mating Compatibility
Mates with all non-threaded PeeWee series plug assemblies.
Specifications Operating Temperature
-55 to 125 ºC
Specifications Rohs Compliant
TBD
Specifications Series
PeeWee
Specifications Test Voltage
18 kVDC
Specifications Voltage Rating
12 kVDC
