High Voltage Double-Ended Plug Cable Assembly
High Voltage Double-Ended Plug Cable Assembly
SKU:HIG-d4959e
High Voltage Cable Assembly with 20 kVDC and 10A rating, ideal for C 720 series receptacles, threaded coupling, and BeCu contact material.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
High Voltage Double-Ended Plug Cable Assembly
$39.99
Quantity: 1
Claim Your Seller Account
High Voltage Double-Ended Plug Cable Assembly
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Series C 720 Cable Assembly Non-Positive Stop offers a reliable solution for high voltage applications, with a voltage rating of 20 kVDC and a current rating of 10 A. This non-standard part is designed for exceptional performance in various environments, with an altitude/ reduced pressure rating of up to 70,000 ft and an operating temperature range from -55 to 95 ºC. Featuring plastic insulator material and a threaded coupling style, this assembly is suited for compatibility with all C 720 series and LGH 1/2I series receptacles. The contact properties include BeCu with CRES hood and gold contact finish for optimal conductivity and durability.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Contact Properties Contact Finish
Gold
Contact Properties Contact Material
BeCu with CRES hood

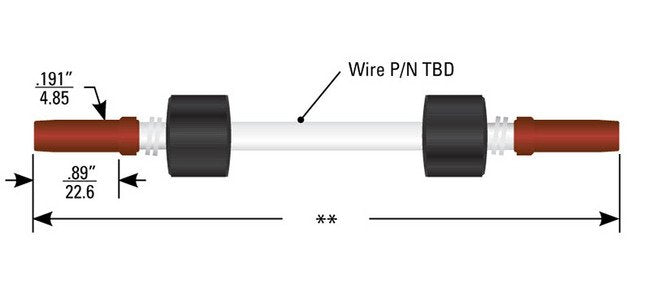

Dimensions A Diameter
.191 in | 4.85 mm
Dimensions B
.89 in | 22.6 mm
Specifications Altitudereduced Pressure Rating
70,000 ft.
Specifications Assembly Type
Double-Ended Plug Cable Assembly
Specifications Coupling Style
Threaded
Specifications Current Rating
10 A
Specifications Export Classification
TBD
Specifications Insulator Material
Plastic
Specifications Lgh Compatibility
LGH 1/2I
Specifications Mating Compatibility
All C 720 series receptaclesAll series 720 receptaclesAll LGH 1/2I series receptacles
Specifications Operating Temperature
-55 to 95 ºC
Specifications Rohs Compliant
TBD
Specifications Sealed Receptacle
N/A
Specifications Series
C 720
Specifications Standardnon Standard
Non-standard Part
Specifications Test Voltage
25 kVDC
Specifications Voltage Rating
20 kVDC
Specifications Wire Insulation
White 0.265 Dia. silicone rubber, #AWG 16
