High Voltage Double-Ended Shielded Cable Assembly C 730 (Washers)
High Voltage Double-Ended Shielded Cable Assembly C 730 (Washers)
SKU:HIG-47b5d4
High Voltage Double-Ended Shielded Cable Assembly C 730 for reliable high voltage transmission in demanding environments.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
High Voltage Double-Ended Shielded Cable Assembly C 730 (Washers)
$49.99
Quantity: 1
Claim Your Seller Account
High Voltage Double-Ended Shielded Cable Assembly C 730 (Washers)
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The High Voltage Double-Ended Shielded Cable Assembly C 730 is a reliable solution designed for critical applications requiring high voltage transmission. With a current rating of 10 A and test voltage of 15 kVDC, this assembly ensures secure connections in demanding environments. Operating between -55 to 95 °C, it meets stringent standards for temperature tolerance. The insulator material is plastic, and it features a threaded coupling style for added security. Compliant with RoHS regulations, this assembly is suitable for various industrial and institutional uses.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Contact Properties Contact Finish
Gold
Contact Properties Contact Material
BeCu with CRES hood

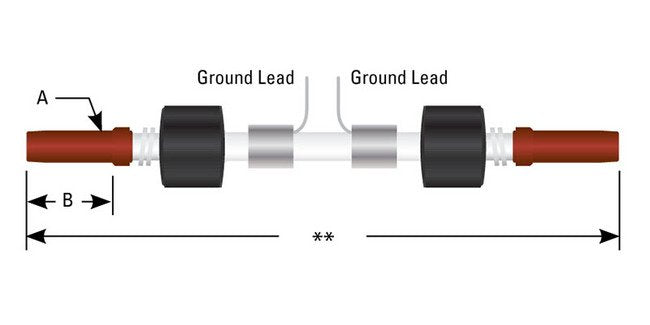

Dimensions A Diameter
.186 in | 4.7 mm
Dimensions B
.530 in | 13.4 mm
Specifications Altitudereduced Pressure Rating
70,000 ft.
Specifications Assembly Type
Double-Ended Plug Cable Assembly
Specifications Coupling Style
Threaded
Specifications Current Rating
10 A
Specifications Export Classification
TBD
Specifications Insulator Material
Plastic
Specifications Lgh Compatibility
LGH 1/2I
Specifications Mating Compatibility
All C 730 series receptaclesAll series 730 receptaclesAll LGH 1/2I series receptacles.
Specifications Operating Temperature
-55 to 95 ºC
Specifications Rohs Compliant
TBD
Specifications Sealed Receptacle
N/A
Specifications Series
C 730
Specifications Standardnon Standard
Standard Part
Specifications Test Voltage
15 kVDC
Specifications Voltage Rating
10 kVDC
Specifications Wire Insulation
White 0.160 Dia. silicone rubber, #AWG 16
