High Voltage EPSL Ceramic Capacitors
High Voltage EPSL Ceramic Capacitors
SKU:CER-8a25cf
Enhanced EPSL Series capacitors for high voltage DC-blocking applications, offering high capacitance in compact size and rugged design.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
High Voltage EPSL Ceramic Capacitors
$49.99
Quantity: 1
Claim Your Seller Account
High Voltage EPSL Ceramic Capacitors
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

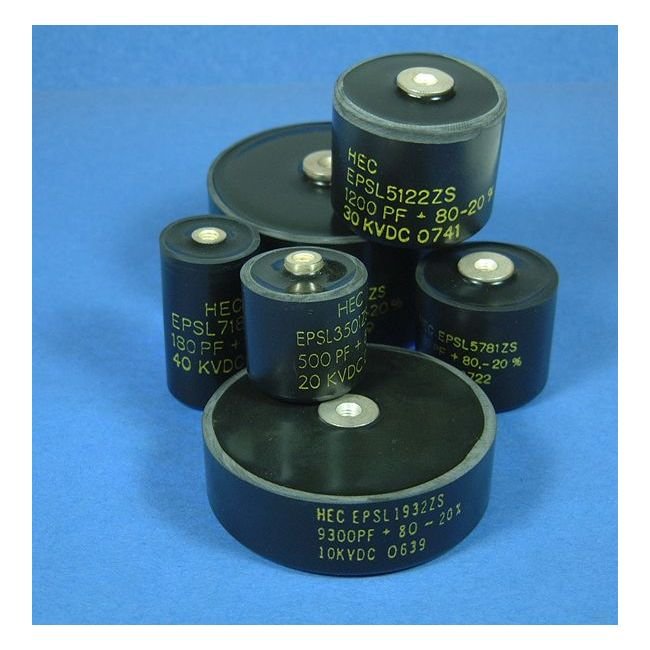

The EPSL Series Ceramic Capacitors are expertly engineered for high voltage DC-blocking applications, boasting high capacitance values within a compact design. Encapsulated in rugged epoxy, these capacitors come with high-torque terminals to ensure secure connections. Featuring a Class II X5U dielectric, they offer superior performance in a wide operating temperature range (-55 to +85 ºC) and can withstand extreme conditions. With capacitance ranging from 180 to 16000 pF and VMAX options of 6 kV to 40 kV, these capacitors deliver reliable and efficient performance for your critical applications.
Product Specifications
Specifications Cap
180 to 16000 pF
Specifications Capacitance Tolerance
+80%, -20% Standard
Specifications Dielectric Characteristic
Class II X5U (+22%, -56% capacitance change with temperature over -55 ºC to +85 ºC)
Specifications Dielectric Strength
Will withstand a DC potential of 1.5 times VMAX rating for 10 Seconds at 25 ºC
Specifications Dissipation Factor
1.5% Maximum when measured at a frequency of 1 kHz and 25 ºC
Specifications Humidity Protection
Epoxy encapsulated
Specifications Minimum Insulation Resistance At 100 Vdc
20000 MΩ
Specifications Operating Temperature Range
-55 to +85 ºC

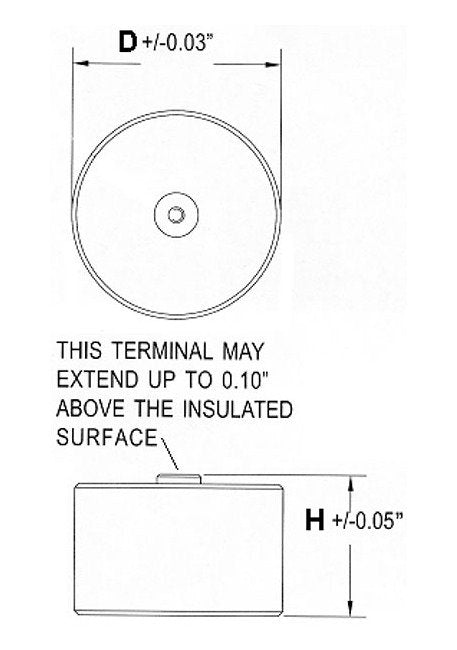

Specifications Physical Depth D
2.37 in
Specifications Physical Height H
1.61 in
Specifications Standard Markings
"HEC", Capacitance, Tolerance, Rated Working Voltage (VDC) and Date Code
Specifications Storage Temperature Range
-55 to +125 ºC

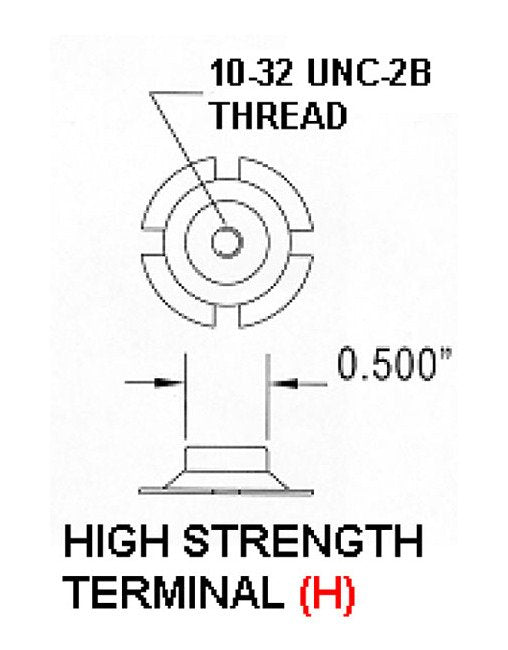

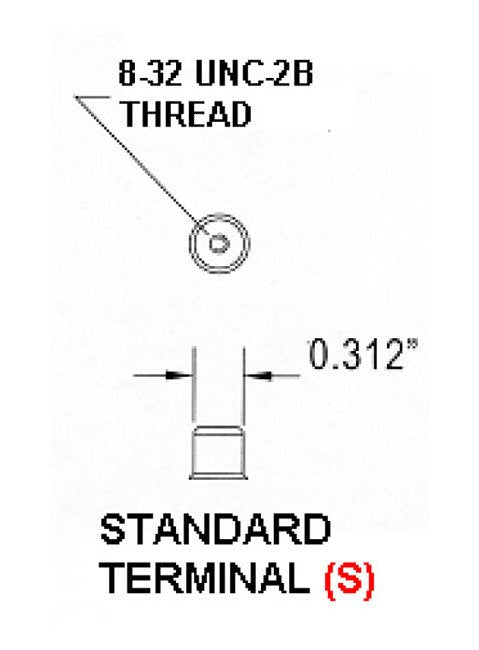

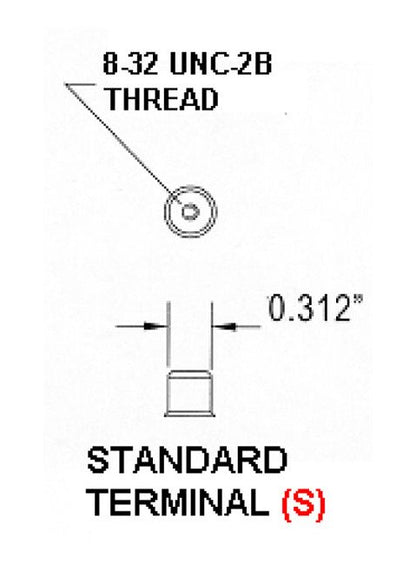

Specifications Terminal H Available
Yes
Specifications Terminal Strength
Maximum applied torque to be 12 inch-pounds or less (standard S terminal)Maximum applied torque to be 25 inch-pounds or less (high-strength H terminal)
Specifications Thread
10-32 | 8-32
Specifications Vmax Dc
6 kV | 10 kV | 15 kV | 20 kV | 30 kV | 40 kV
