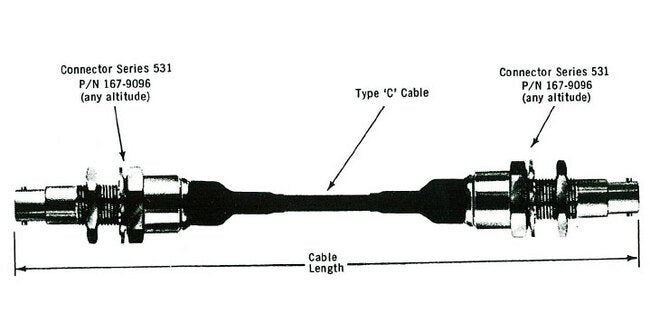

Enhance safety and reliability with our high voltage female cable assembly featuring recessed contacts for added user protection. Designed to minimize electrical shock risks, this assembly boasts a spring finger body contact ensuring a secure ground circuit. With a voltage rating of 15 kVDC and a test voltage of 31 kVDC at 70,000 ft, it meets stringent industry standards for institutional procurement. Operating Temperature Range: -40 to 85°C. Coupling Style: Bayonet. Ideal for applications where safety and performance are crucial.
Product Specifications
Contact Properties Contact Type
Female
Coupling Nut Properties Bayonet Coupling Nut Finish
Nickel
Coupling Nut Properties Bayonet Coupling Nut Material
Brass
Ordering Information 0
Cable Assembly Ordering Information Length Tolerance Chart Example : 167-4237-10F-8N Length Tolerance Cable Assembly Type 7 1/2' or less ±1/4" 10 feet 8 inches 7 1/2' to 12 1/2' ±1" Example : 167-4237-18N 12 1/2' to 22 1/2' ±1 1/2" Cable Assembly Type 22 1/2' to 35' ±2" 18 inches 35' to 50' ±3" 50' to 70' ±4" 70' to 100' ±5"
Specifications Altitudereduced Pressure Rating
70,000 ft.
Specifications Assembly Type
Double-Ended Plug Cable Assembly
Specifications Braid Termination
Crimp
Specifications Coupling Style
Bayonet
Specifications Current Rating
10 A
Specifications End 1
1674535
Specifications Export Classification
TBD
Specifications Operating Temperature
-40 to 85 ºC
Specifications Plug Contact Materialfinish
BeCu/Au
Specifications Plug Insulator Material
Plastic
Specifications Rohs Compliant
TBD
Specifications Sealed Receptacle
N/A
Specifications Series
531
Specifications Standardnon Standard
Standard Part
Specifications Test Voltage 70000 Ft
31
Specifications Voltage Rating
15 kVDC
Specifications Wire Insulation
PE
Specifications Wire Type
Shielded
