High Voltage Female Contact Cable Connector Series 531

Name: High Voltage Female Contact Cable Connector Series 531
Brand: Teledyne Reynolds
SKU: HIG-b115ed
Price: 49.99 USD
Availability: OutOfStock

SKU:HIG-b115ed

Ensure safety and reliability with our Series 531 High Voltage Female Contact Cable Connector, featuring recessed contacts and a 15 kVDC voltage rating.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Experience utmost safety with our High Voltage Female Contact Cable Connector Series 531. Designed with recessed contacts to prevent electrical shock, this connector boasts a robust construction and reliable ground circuit. With a voltage rating of 15 kVDC and brass coupling nut material, it ensures secure connections even in challenging environments. Certified to meet industry standards, this connector is ideal for high voltage applications and offers exceptional performance and durability.

Product Specifications

Body Properties Coupling Nut Material

Brass

Contact Properties Contact Type

Female

Coupling Nut Properties Bayonet Coupling Nut Finish

Nickel

Coupling Nut Properties Bayonet Coupling Nut Material

Brass

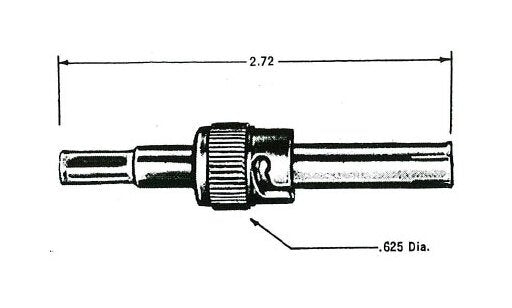

Dimensions A Diameter

0.625 in | 15.9 mm

Dimensions B

2.72 in | 69 mm

Specifications Accomodates

Type 'C' Cable (P/N 167-2669)

Specifications Altitudereduced Pressure Rating

70,000 ft.

Specifications Assembly Type

Plug Bag Assembly

Specifications Braid Termination

Crimp

Specifications Contact

Beryllium Copper

Specifications Coupling Style

Bayonet

Specifications Current Rating

10 A

Specifications Export Classification

TBD

Specifications Finish

Nickel Plate

Specifications Life Test

This connector has successfully completed 3000 hours at 35,000 volts DC at an altitude of 130,000 feet. For further information please contact Reynolds Engineering Dept.

Specifications Operating Temperature

-40 to 85 ÂºC

Specifications Plug Contact Materialfinish

BeCu/Au

Specifications Plug Insulator Material

Plastic

Specifications Production Test

100% tested at 15KVDC for 10 sec. 2% lot tested at altitude to 31KVDC, 3 minutes min.

Specifications Rohs Compliant

TBD

Specifications Sealed Receptacle

N/A

Specifications Series

531

Specifications Standardnon Standard

Standard Part

Specifications Test Voltage 70000 Ft

Specifications Voltage Rating

15 kVDC

Specifications Wire Insulation

Specifications Wire Type

Shielded
