High Voltage Female Contact Crimp Connector - Series 31
High Voltage Female Contact Crimp Connector - Series 31
SKU:HIG-fe9166

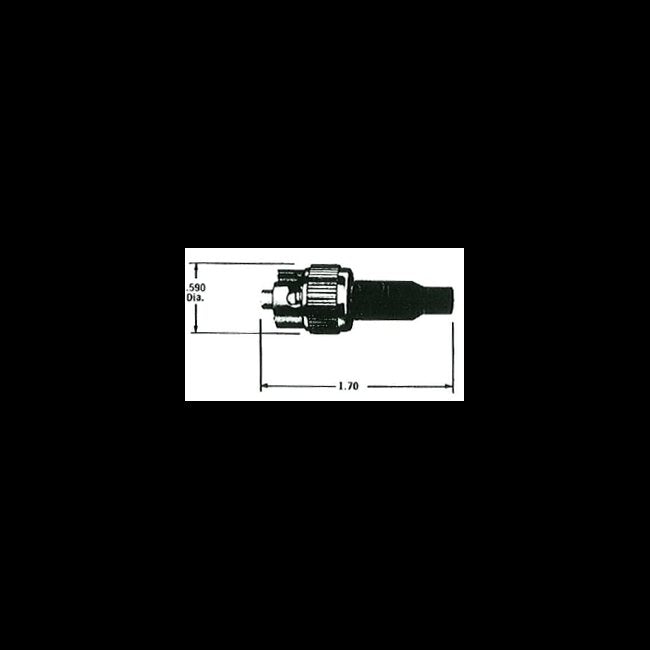

High Voltage Female Contact Crimp Connector - Series 31, ideal for 6.5 kVDC applications. Reliable, RoHS compliant, and suitable for industrial use.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
High Voltage Female Contact Crimp Connector - Series 31
$39.99
Quantity: 1
Claim Your Seller Account
High Voltage Female Contact Crimp Connector - Series 31
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The High Voltage Female Contact Crimp Connector from the Series 31 line is a reliable solution for high voltage applications, with a voltage rating of 6.5 kVDC. This non-standard part features a sea level altitude rating, beryllium copper contact material, and brass coupling nut with gold plating. It is designed for plug bag assembly with a bayonet coupling style, ensuring secure connections in demanding environments. RoHS compliance and a temperature range of -40 to 85 ºC make it suitable for diverse industrial settings.
Product Specifications
Body Properties Coupling Nut Finish
Gold Plated
Body Properties Coupling Nut Material
Brass
Cable Preparation 0
Reynolds Industries Inc. - High Voltage Connectors, High Voltage Cable Assemblies, High Voltage Wire, High Voltage Cable, High Voltage Capacitors _uacct = "UA-425769-1"; urchinTracker(); CLICK HERE FOR A PHOTOGRAPHIC "HOW TO" Series 31 (P/N 167-0669) Step 1 Cut cable to length, clean and square. Slip boot over cable. Strip outer jacket to dimension shown. Trim exposed braid to dimension. Trim inner insulation to dimension. No nicked or severed strands allowed. Step 2 Insert sleeve under braid as shown. Rosin-flux and pot tin dip both the inner core and exposed braid using SN60 solder in accordance with J-STD-006. Remove all flux. Step 3 Solder contact in place through hole using SN60 solder in accordance with J-STD-006. Completed solder joint must have a continuous fillet of solder between the conductor and the contact. The solder in the feed hole must be free of pinholes and flush or below flush. Rear of contact shoulder shall be as flush as possible with insulation of cable core, but not to exceed .030". Step 4 Slip prepared cable into the connector body until the flange inside the connector butts against braid cut off. Solder connector body to braid through 4 holes using SN60 solder in accordance with J-STD-006. Clean thoroughly. Step 5 Slide boot into position as shown. Download this page as a PDF for best print quality.
Contact Properties Contact Material
Beryllium Copper
Contact Properties Contact Type
Female
Specifications Altitudereduced Pressure Rating
Sea Level
Specifications Assembly Type
Plug Bag Assembly
Specifications Braid Termination
Crimp
Specifications Coupling Style
Bayonet
Specifications Current Rating
10 Amp
Specifications Export Classification
TBD
Specifications Insulator Material
Plastic
Specifications Mating Compatibility
Mates all Series 311 Cond. 1 receptacles and adaptors.
Specifications Operating Temperature
-40 to 85 ºC
Specifications Polarization
Cond. 1
Specifications Rohs Compliant
TBD
Specifications Sealed Receptacle
N/A
Specifications Series
31
Specifications Standardnon Standard
Non-standard Part
Specifications Test Voltage
TBD
Specifications Voltage Rating
6.5 kVDC
