High Voltage Female Pigtail Cable Assembly

High Voltage Female Pigtail Cable Assembly

SKU:HIG-b94e4a

Enhanced safety High Voltage Female Pigtail Cable Assembly with recessed contacts for 10 kVDC applications.

Regular price $49.99
Regular price Sale price $49.99
Sale

Initiate Order

High Voltage Female Pigtail Cable Assembly

High Voltage Female Pigtail Cable Assembly

$49.99

Quantity: 1

Claim Your Seller Account

High Voltage Female Pigtail Cable Assembly

High Voltage Female Pigtail Cable Assembly

$49.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

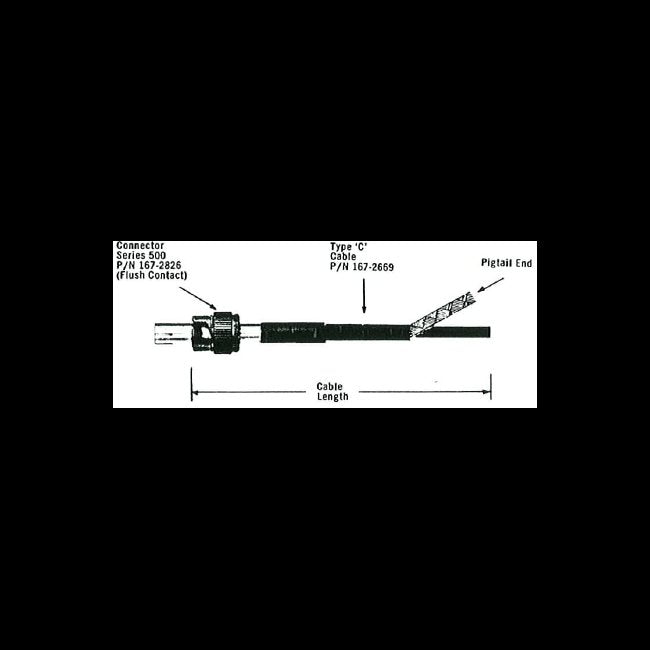

The High Voltage Female Pigtail Cable Assembly offers enhanced user safety with its recessed contacts designed to minimize the risk of electrical shock. Featuring Series 500, 521, 521 SL, 531, and 531 SL Coaxial Connectors, this assembly ensures added safety measures with spring finger body contacts for reliable grounding. With a voltage rating of 10 kVDC at sea level and a wide operating temperature range from -40 to 85°C, this assembly is ideal for high voltage applications where user safety is paramount.

Product Specifications

Contact Properties Contact Finish
Silver
Contact Properties Contact Material
Beryllium Copper
Contact Properties Contact Type
Female
Specifications Altitudereduced Pressure Rating
Sea Level
Specifications Assembly Type
Single-Ended Receptacle Cable Assembly
Specifications Braid Termination
Crimp
Specifications Coupling Style
Bayonet
Specifications Current Rating
TBD
Specifications End 1
1672826
Specifications Export Classification
TBD
Specifications Insulator Material
Plastic
Specifications Operating Temperature
-40 to 85 ºC
Specifications Rohs Compliant
TBD
Specifications Sealed Receptacle
No
Specifications Series
500
Specifications Standardnon Standard
Non-standard Part
Specifications Voltage Rating
10 kVDC
Specifications Wire Type
Shielded
