High Voltage FEP Wire Cable
High Voltage FEP Wire Cable
SKU:HIG-504397
Enhanced high voltage wire with exceptional dielectric strength, compact design, and superior durability for reliable performance in demanding environments.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
High Voltage FEP Wire Cable
$24.99
Quantity: 1
Claim Your Seller Account
High Voltage FEP Wire Cable
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

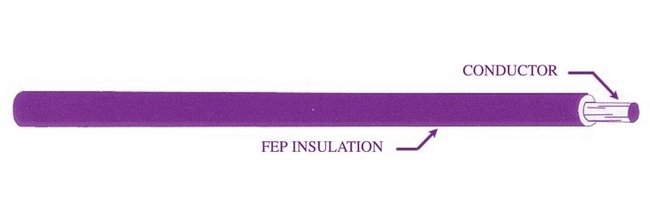

Upgrade your high voltage systems with our FEP insulated wire and cable, boasting exceptional dielectric strength and compact design. With outstanding durability, resistance to degradation, and ease of installation, this cable guarantees reliable performance in demanding environments. Its low corona inception and temperature resilience make it ideal for diverse applications, including power supplies, TWTs, and transformers.
Product Specifications
Cable Wire Properties Jacketed
No
Cable Wire Properties Silicone Coated
No
Cable Wire Properties Twisted Pair
No
Cable Wire Properties Twisted Shielded Pair
No
Specifications Conductor Diameter
0.015 in | 0.050 in | 0.40 mm
Specifications Conductor Gauge
28 AWG
Specifications Conductor Material
Copper
Specifications Conductor Plating
Silver Plated
Specifications Conductor Strands
19/40
Specifications Default Color
Natural
Specifications Diameter Over Insulation
0.050 in | 1.20 mm
Specifications Insulator Material
FEP
Specifications Operating Temperature
-55 to 125 ºC
Specifications Overall Diameter
0.050 in
Specifications Standardnon Standard
Standard Part
Specifications Voltage Rating
18 kVDC
