High Voltage Front Panel Mount Receptacle Series 720
High Voltage Front Panel Mount Receptacle Series 720
SKU:HIG-ddfc72
High voltage front panel mount receptacle with silicone seals for secure, reliable connections in high voltage environments.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
High Voltage Front Panel Mount Receptacle Series 720
$49.99
Quantity: 1
Claim Your Seller Account
High Voltage Front Panel Mount Receptacle Series 720
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Series 720 Receptacle Sealed, Front Panel Mount is designed for high reliability in high voltage environments, with silicone seals ensuring optimal performance. It features a current rating of 10 Amp, -55 to 125 ºC operating temperature, and a test voltage of 25 kVDC at 70,000 ft. This receptacle mates all Series 720 and LGH LI lead assemblies, providing versatility and ease of use. With a threaded coupling style and gold-finished brass contacts, this connector offers secure connections with minimal leak rates. The plastic body and silicone seal make it durable and reliable for various industrial applications.
Ready to Grow Without Cash Flow Constraints?

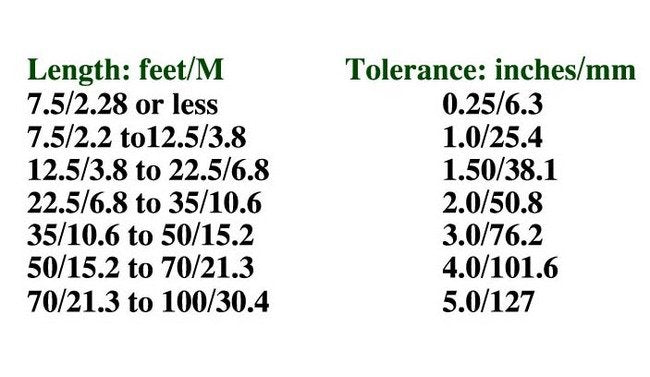

Product Specifications
Body Properties Coupling Nut Material
Plastic
Contact Properties Contact Diameter
0.063 in | 1.6 mm
Contact Properties Contact Finish
Gold
Contact Properties Contact Material
Brass
Contact Properties Contact Type
Male

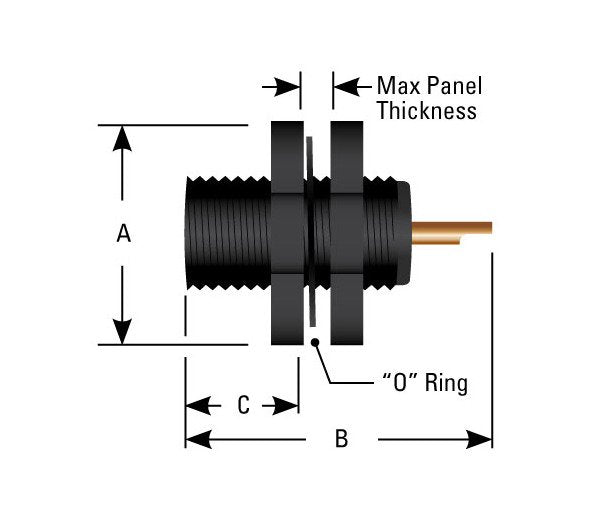

Dimensions A
.960 in | 24.38 mm
Dimensions B
1.195 in | 30.35 mm
Dimensions C
.575 in | 14.61 mm
Specifications Altitudereduced Pressure Rating
70,000 ft.
Specifications Assembly Type
Receptacle Bag Assembly
Specifications Coupling Style
Threaded
Specifications Current Rating
10 Amp | 4 Amp | 6 Amp
Specifications Export Classification
TBD
Specifications Insulator Material
Plastic
Specifications Lgh Compatibility
LGH 1I
Specifications Mating Compatibility
Mates all series 720 and LGH LI lead assemblies Also mates all 20 kVDC rated Reynolds C720 lead assemblies; this combination will reduce the upper operating temperature from +125ºC to +95ºC.
Specifications Maximum Leak Rate Helium
1 X 10-6 cc/sec
Specifications Max Panel Thickness
.250 in | 6.35 mm
Specifications Operating Temperature
-55 to 125 ºC
Specifications Optional Mounting Hole A
0.480 in | 12.19 mm
Specifications Optional Mounting Hole B
.508 in | 12.90 mm
Specifications Panel Mounting Style
Front Mount
Specifications Panel Mounting Torque
23 to 28 in-lbs
Specifications Pressure Differential Rating
Sealed for 1 ATM
Specifications Rohs Compliant
TBD
Specifications Sealed Receptacle
Yes
Specifications Seal Material
Silicone
Specifications Series
720
Specifications Standardnon Standard
Standard Part
Specifications Test Voltage
25 kVDC at 70,000 ft. (simulated) at ambient temperature
Specifications Voltage Rating
20 kVDC
