High Voltage Hermetic Ceramic-to-Metal Receptacle (Solder Flange)
High Voltage Hermetic Ceramic-to-Metal Receptacle (Solder Flange)
SKU:HIG-d0d0db
High Voltage Hermetic Receptacle with Solder Flange, 20 kVDC, Ceramic Insulator, Male Contact, Sealed Receptacle
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
High Voltage Hermetic Ceramic-to-Metal Receptacle (Solder Flange)
$129.99
Quantity: 1
Claim Your Seller Account
High Voltage Hermetic Ceramic-to-Metal Receptacle (Solder Flange)
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

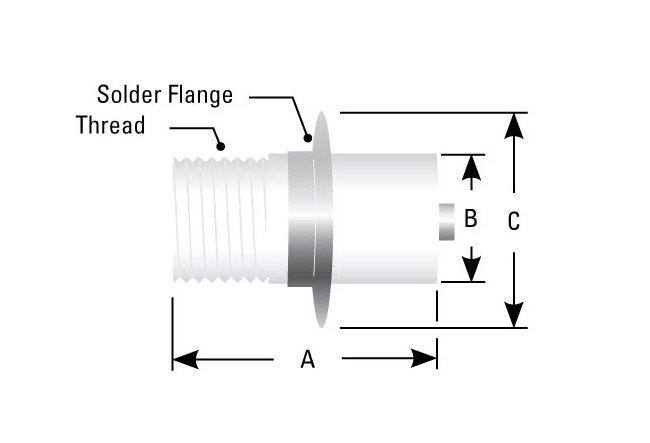

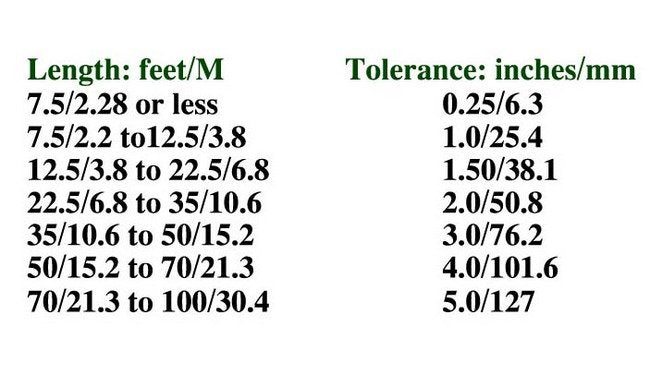

The Series 720 Single Pin Hermetic Ceramic-to-Metal Brazed Receptacle with a Solder Flange is designed for high voltage applications, boasting a voltage rating of 20 kVDC and an altitude/pressure rating of 70,000 ft. It features an iron nickel alloy flange, sealed receptacle, and is compatible with various lead assemblies. With an operating temperature range of -55 to 125 °C, this receptacle ensures reliable performance in diverse environments. The insulator material is ceramic, guaranteeing high insulation resistance, while the male contact type offers secure connectivity. This standard part with threaded coupling style is ideal for critical applications requiring precision and durability.
Product Specifications
Contact Properties Contact Diameter
0.063 in | 1.6 mm
Contact Properties Contact Type
Male
Specifications Altitudereduced Pressure Rating
70,000 ft.
Specifications Assembly Type
Receptacle Bag Assembly
Specifications Coupling Style
Threaded
Specifications Flange Material
Iron nickel alloy with nickel plating
Specifications Insulator Material
Ceramic
Specifications Mating Compatibility
Mates all series 720 and LGH LI lead assemblies Also mates all 20 kVDC rated Reynolds C720 lead assemblies; this combination will reduce the upper operating temperature from +125ºC to +95ºC.
Specifications Maximum Leak Rate Helium
1 X 10-8 cc/sec
Specifications Number Of Contacts
1
Specifications Operating Temperature
-55 to 125 ºC
Specifications Panel Mounting Style
Solder Flange
Specifications Pressure Differential Rating
Sealed for 1 ATM
Specifications Sealed Receptacle
Yes
Specifications Series
720
Specifications Standardnon Standard
Standard Part
Specifications Test Voltage
25 kVDC at 70,000 ft. (simulated) at ambient temperature
Specifications Voltage Rating
20 kVDC
