High Voltage Hermetic Ceramic-to-Metal Receptacle (Solder Flange)
High Voltage Hermetic Ceramic-to-Metal Receptacle (Solder Flange)
SKU:HIG-de13d6
High voltage hermetic ceramic-to-metal receptacle with 10 kVDC rating, optimal for demanding environments.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
High Voltage Hermetic Ceramic-to-Metal Receptacle (Solder Flange)
$39.99
Quantity: 1
Claim Your Seller Account
High Voltage Hermetic Ceramic-to-Metal Receptacle (Solder Flange)
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

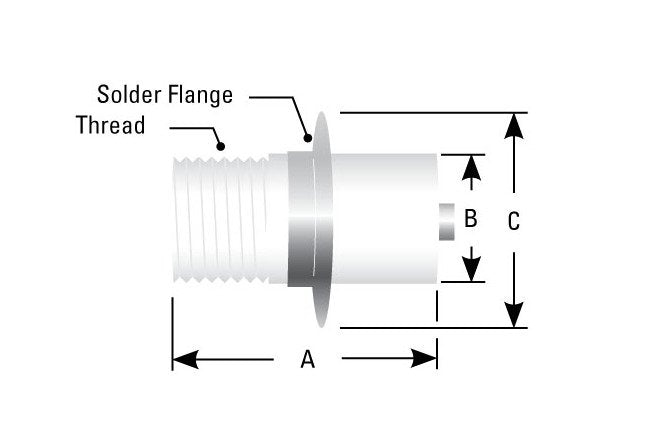

The Series 730/830 Single Pin Hermetic Ceramic-to-Metal Brazed Receptacle (Solder Flange) offers a reliable and high voltage connection solution. With a voltage rating of 10 kVDC and a test voltage of 15 kVDC at 70,000 ft altitude, this receptacle ensures secure performance in demanding environments. The ceramic insulator material and iron nickel alloy with Gold Plate flange provide durability and effectiveness across a wide operating temperature range from -55 to 125 °C. Mating compatibility with various lead assemblies and a low maximum leak rate of 1 X 10-8 cc/sec make this receptacle a versatile and efficient choice.
Ready to Grow Without Cash Flow Constraints?

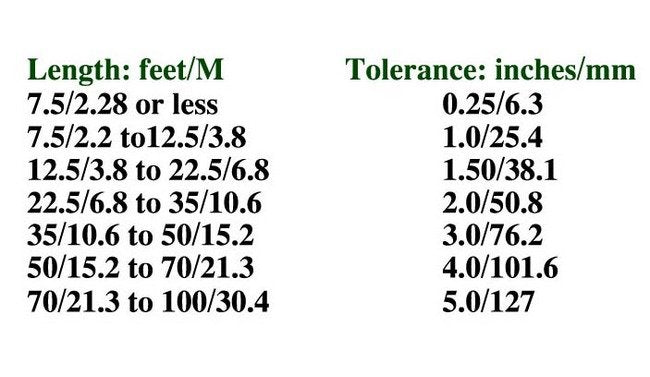

Product Specifications
Contact Properties Contact Diameter
0.063 in | 1.6 mm
Contact Properties Contact Type
Male
Specifications Altitudereduced Pressure Rating
70,000 ft.
Specifications Assembly Type
Receptacle Bag Assembly
Specifications Coupling Style
Threaded
Specifications Flange Material
Iron nickel alloy with Gold Plate
Specifications Insulator Material
Ceramic
Specifications Mating Compatibility
Mates all Series 730, 830 and LGH 1/2I lead assemblies. Also mates all 10 kVDC rated Reynolds C730 lead assemblies; this combination will reduce the upper operating temperature from +125ºC to +95ºC.
Specifications Maximum Leak Rate Helium
1 X 10-8 cc/sec
Specifications Number Of Contacts
1
Specifications Operating Temperature
-55 to 125 ºC
Specifications Panel Mounting Style
Solder Flange
Specifications Pressure Differential Rating
Sealed for 1 ATM
Specifications Sealed Receptacle
Yes
Specifications Series
730/830
Specifications Standardnon Standard
Standard Part
Specifications Test Voltage
15 kVDC at 70,000 ft. (Simulated) at Ambient Temperature
Specifications Voltage Rating
10 kVDC
