High Voltage Hermetic Ceramic-to-Metal Weld Flange Receptacle (600 Series)
High Voltage Hermetic Ceramic-to-Metal Weld Flange Receptacle (600 Series)
SKU:HIG-d87b33
Reliable High Voltage Hermetic Ceramic-to-Metal Weld Flange Receptacle from the 600 Series, designed for Aerospace/Defense applications.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
High Voltage Hermetic Ceramic-to-Metal Weld Flange Receptacle (600 Series)
$89.99
Quantity: 1
Claim Your Seller Account
High Voltage Hermetic Ceramic-to-Metal Weld Flange Receptacle (600 Series)
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

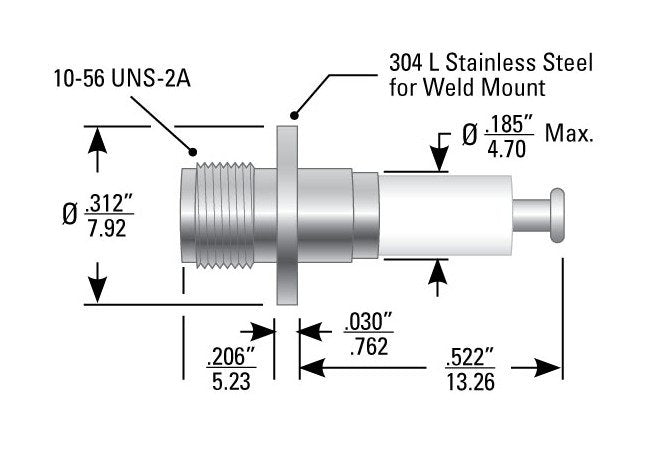

The High Voltage Hermetic Ceramic-to-Metal Weld Flange Receptacle from the 600 Series offers exceptional reliability since 1964, ideal for Aerospace/Defense and high-end commercial applications. With a voltage rating of 5 kVDC, this sealed receptacle is tested up to 70,000 ft at 7.5 kVDC, meeting stringent industry requirements. Featuring a ceramic insulator, threaded coupling style, and capable of withstanding temperatures from -55 to 125 ºC, this receptacle sets the standard for high voltage connectivity. Mates seamlessly with all Series 600 plug assemblies and ensures minimal leak rate with maximum durability.
Product Specifications
Specifications Altitudereduced Pressure Rating
70,000 ft.
Specifications Assembly Type
Receptacle Bag Assembly
Specifications Coupling Style
Threaded
Specifications Insulator Material
Ceramic
Specifications Mating Compatibility
Mates all Series 600 plug assemblies
Specifications Maximum Leak Rate Helium
1 X 10-8 cc/sec
Specifications Number Of Contacts
1
Specifications Operating Temperature
-55 to 125 ºC
Specifications Panel Mounting Style
Weld Flange
Specifications Pressure Differential Rating
Sealed for 1 ATM
Specifications Sealed Receptacle
Yes
Specifications Series
600
Specifications Standardnon Standard
Standard Part
Specifications Test Voltage
7.5 kVDC at 70,000 ft. (simulated) at ambient temperature
Specifications Voltage Rating
5 kVDC
