High Voltage HT50 Series Ceramic Capacitors - 50pF NP0 Dielectric
High Voltage HT50 Series Ceramic Capacitors - 50pF NP0 Dielectric
SKU:CER-8ae95d
High-performance HT50 Series Ceramic Capacitors - 50pF NP0 Dielectric for high-voltage applications. Reliable stability at 7.5kV DC.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
High Voltage HT50 Series Ceramic Capacitors - 50pF NP0 Dielectric
$24.99
Quantity: 1
Claim Your Seller Account
High Voltage HT50 Series Ceramic Capacitors - 50pF NP0 Dielectric
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The HT50 Series Ceramic Capacitors offer exceptional performance in high-voltage applications, with a capacitance of 50 pF and a robust NP0 dielectric ensuring stability across a wide temperature range. Designed for demanding environments, these capacitors support voltages up to 7.5 kV DC, making them ideal for critical systems requiring reliable energy storage and signal coupling. With a maximum current rating of 10 kV·A and frequency capabilities ranging from 1.13 MHz to 23.0 MHz, these capacitors deliver superior efficiency and precision in power electronics and RF circuits.
Product Specifications
Specifications Cap
50 pF
Specifications Dielectric Tc
NP0
Specifications Fh
23.0 MHz
Specifications Fl
1.13 MHz
Specifications Imax Rms
8.5 A
Specifications Smax
10 kV·A

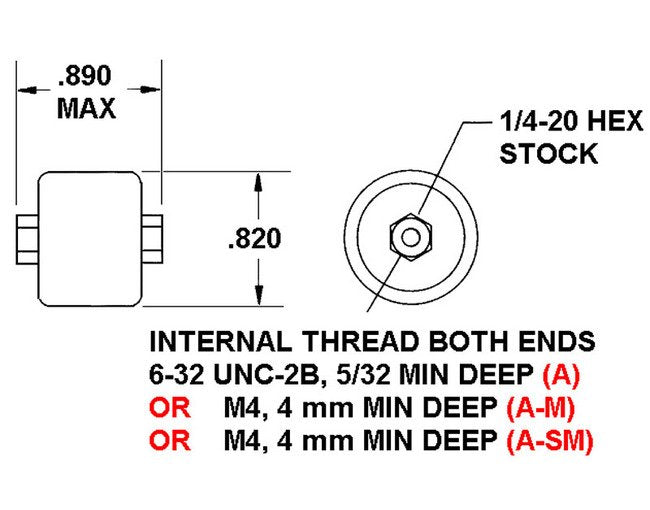

Specifications Thread
6-32 UNC-2B 5/32 min deep
Specifications Vmax Dc
7.5 kV
