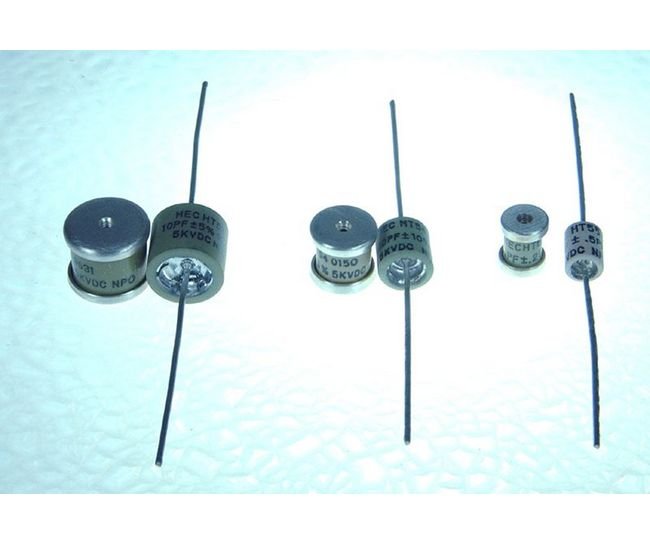

High Voltage HT54 Series Ceramic Capacitors
High Voltage HT54 Series Ceramic Capacitors
SKU:CER-63383b

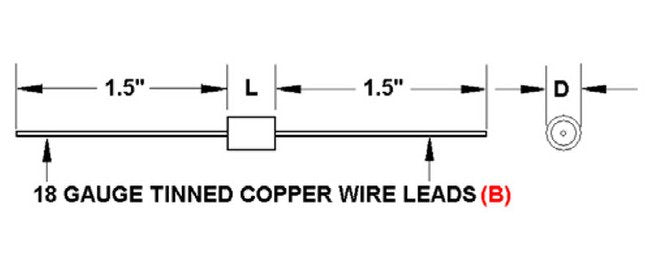

High-performance HT54 Series Ceramic Capacitors with 5 kVDC, 5 kVA max power, and 3-40 pF capacitance range. Threaded terminals or wire leads. NP0/N750 TC's.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
High Voltage HT54 Series Ceramic Capacitors
$29.99
Quantity: 1
Claim Your Seller Account
High Voltage HT54 Series Ceramic Capacitors
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

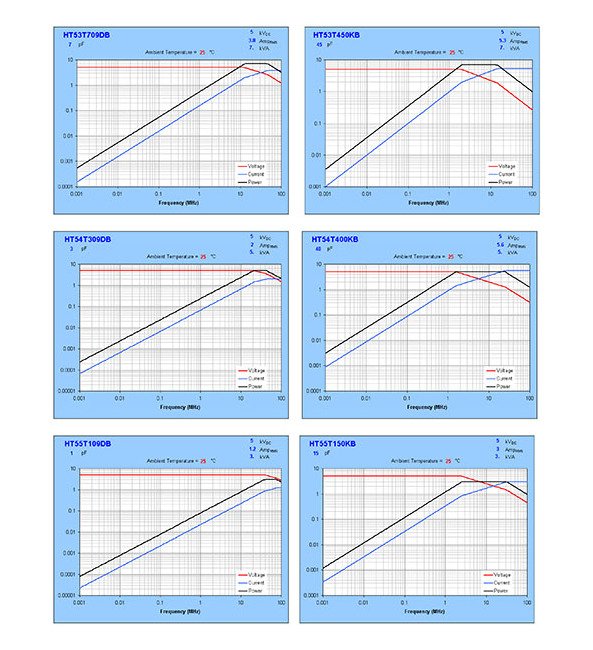

The HT54 Series Ceramic Capacitors are designed for high-performance applications, with a 5 kVDC working voltage and a maximum power rating of 5 kVA. These capacitors offer a capacitance range of 3 to 40 pF, ensuring precise and reliable operation. Available with threaded terminals or wire leads, they feature Class I NP0 or N750 TC's for exceptional stability and performance. Ideal for diverse electronics projects requiring high-voltage tolerance and superior capacitance control.
Product Specifications
Specifications Cap
3 to 40 pF
Specifications Capacitance Tolerance
±0.5 pF | ±0.25 pF | ±5% | ±10%
Specifications Thread
#18 | 2-56 | M4
