High Voltage HT54 Series Ceramic Capacitors - Power and Precision for Critical Applications
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
High Voltage HT54 Series Ceramic Capacitors
$29.99
Quantity: 1
Claim Your Seller Account
High Voltage HT54 Series Ceramic Capacitors
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

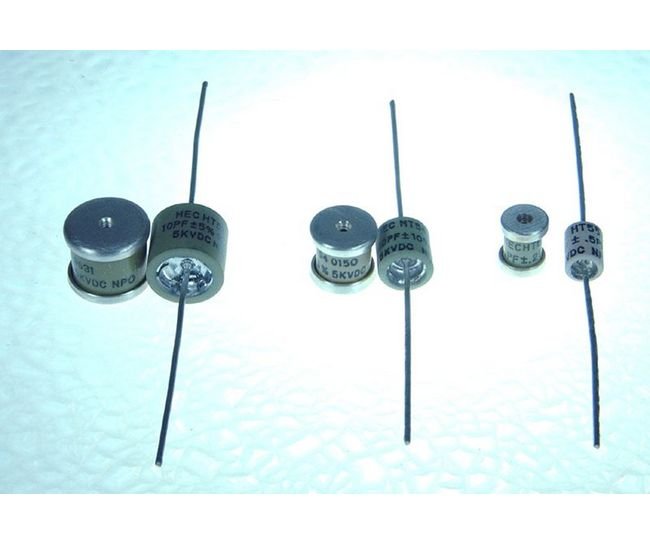

The HT54 Series Ceramic Capacitors deliver superior performance with a 5 kVA max power rating and 5 kVDC working voltage. Featuring a capacitance of 35 pF, N750 dielectric, and threaded terminals, these capacitors ensure reliable operation across a wide frequency range (1.82 MHz to 28.5 MHz). Ideal for demanding applications, they offer high-current handling capabilities (5.6 A RMS) in a compact design. Compliant with Class I NP0 standards, these capacitors are engineered for precision and durability, meeting the stringent requirements of institutional and government procurement.
Product Specifications
Specifications Cap
35 pF
Specifications Dielectric Tc
N750
Specifications Dimension D
3/8 in
Specifications Dimension L
3/8 in
Specifications Fh
28.5 MHz
Specifications Fl
1.82 MHz
Specifications Imax Rms
5.6 A
Specifications Smax
5 kV·A

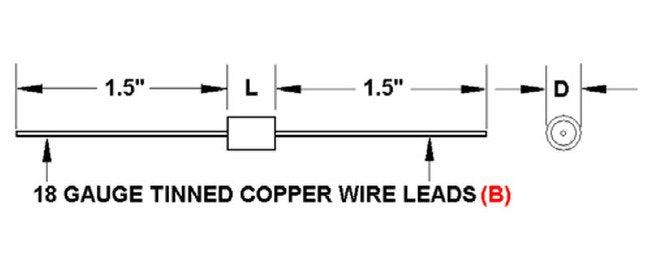

Specifications Thread
#18
Specifications Vmax Dc
5 kV
