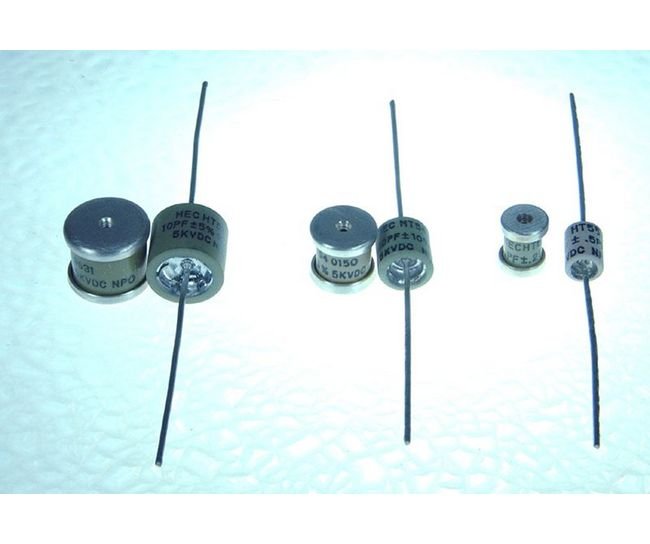

High-Voltage HT54 Series Ceramic Capacitors

High-Voltage HT54 Series Ceramic Capacitors

SKU:CER-e10a1b

High-Voltage Ceramic Capacitors with 5 kVA Max Power, ideal for precision applications.

Regular price $49.99
Regular price Sale price $49.99
Sale

Initiate Order

High-Voltage HT54 Series Ceramic Capacitors

High-Voltage HT54 Series Ceramic Capacitors

$49.99

Quantity: 1

Claim Your Seller Account

High-Voltage HT54 Series Ceramic Capacitors

High-Voltage HT54 Series Ceramic Capacitors

$49.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

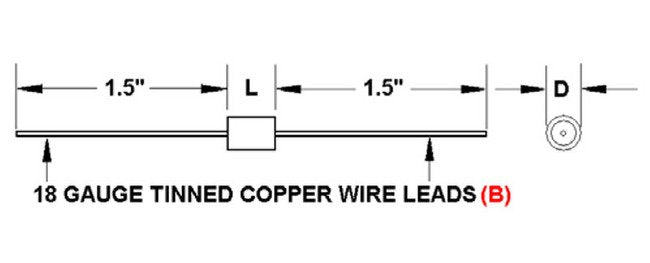

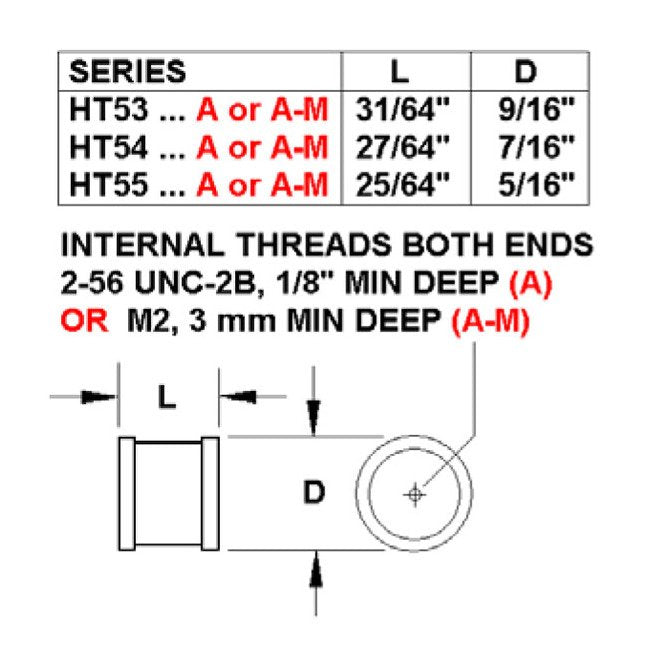

The HT54 Series Ceramic Capacitors deliver exceptional performance with a 5 kVDC working voltage and a maximum power capacity of 5 kVA. Designed for precision applications, these capacitors offer a capacitance range from 1 to 40 pF, a choice of threaded terminals or wire leads, and come in Class I NP0 or N750 TC's. Ideal for high-frequency circuits, they feature a low dissipation factor and high insulation resistance, ensuring reliability and stability in demanding environments.

Product Specifications

Specifications Cap
12 pF
Specifications Dielectric Tc
NP0
Specifications Dimension D
3/8 in
Specifications Dimension L
3/8 in
Specifications Fh
22.3 MHz
Specifications Fl
5.30 MHz
Specifications Imax Rms
2.9 A
Specifications Smax
5 kV·A
Specifications Thread
#18
Specifications Vmax Dc
5 kV
