High Voltage HT55 Series Ceramic Capacitors

Name: High Voltage HT55 Series Ceramic Capacitors
Brand: High Energy Corp.
SKU: CER-9c6187
Price: 39.99 USD
Availability: OutOfStock

SKU:CER-9c6187

High Voltage Ceramic Capacitors for Precision Applications, 5 kVDC, 3 kVA Max Power

$39.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

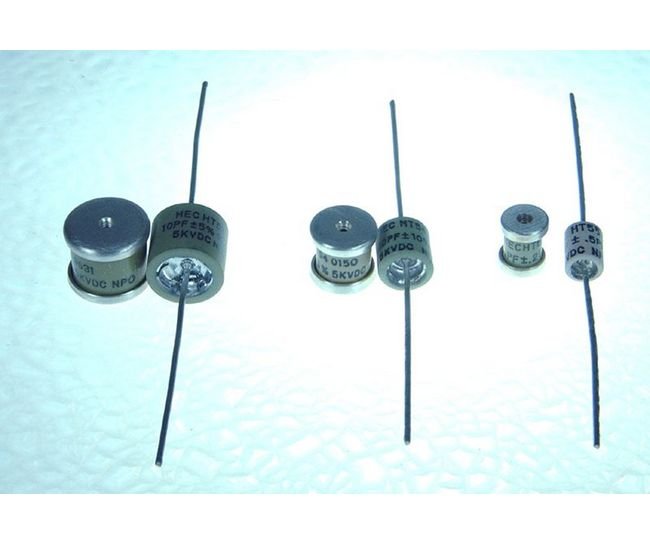

The HT55 Series Ceramic Capacitors offer exceptional performance with a 5 kVDC working voltage, supporting up to 3 kVA max power. Available in 1 to 40 pF capacitance options, these capacitors feature threaded terminals or wire leads for versatile installation. With Class I NP0 or N750 TC's, they ensure reliable operation and precise capacitance values. Ideal for demanding applications, these capacitors deliver high frequency stability and low losses, meeting stringent industry standards for quality and durability.

Product Specifications

Specifications Cap

1 pF

Specifications Dielectric Tc

NP0

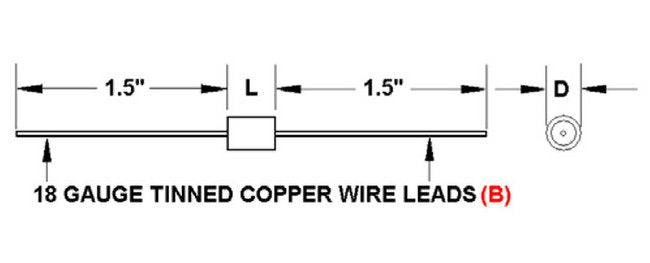

Specifications Dimension D

9/32 in

Specifications Dimension L

11/32 in

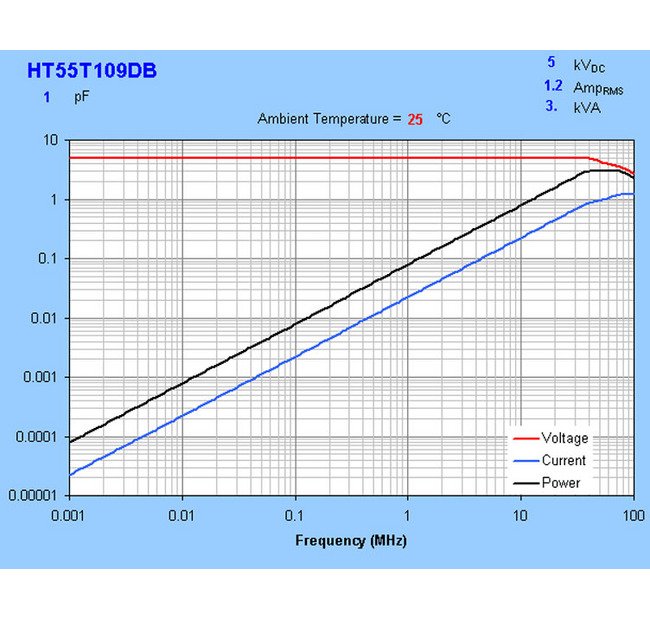

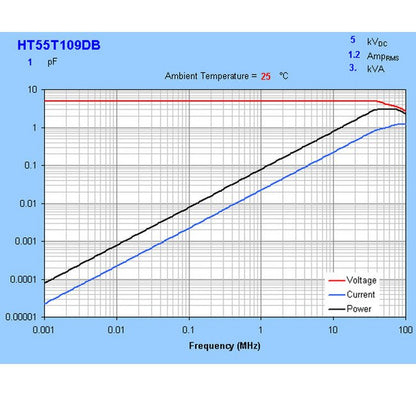

Specifications Fh

84.7 MHz

Specifications Fl

5.65 MHz

Specifications Imax Rms

1.2 A

Specifications Smax

3 kV·A

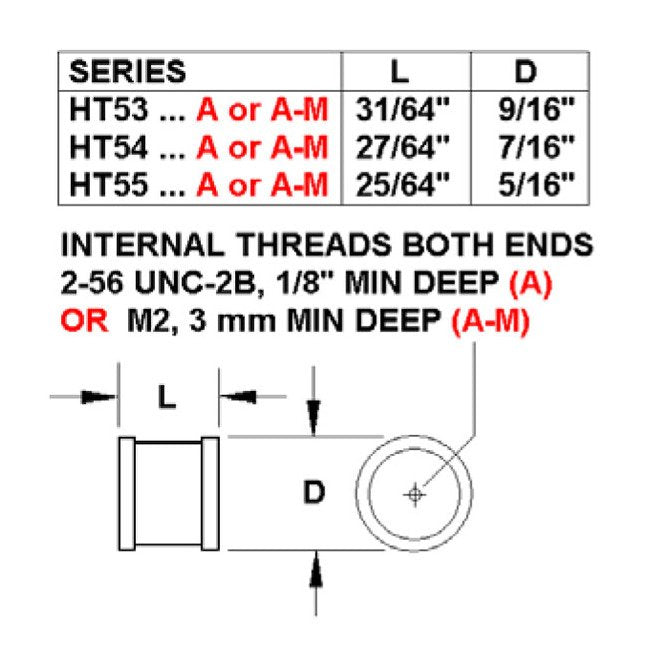

Specifications Thread

#18

Specifications Vmax Dc

5 kV
