High Voltage HT57 Ceramic Capacitors
High Voltage HT57 Ceramic Capacitors
SKU:CER-dfe329
High-performance ceramic capacitors for demanding applications with 60 pF capacitance and 15 kV DC voltage rating. Ideal for critical circuitry.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
High Voltage HT57 Ceramic Capacitors
$24.99
Quantity: 1
Claim Your Seller Account
High Voltage HT57 Ceramic Capacitors
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The HT57 Series Ceramic Capacitors are designed for demanding applications requiring high performance and reliability. With a capacitance of 60 pF and a voltage rating of 15 kV DC, these capacitors ensure stable operation at frequencies ranging from 0.825 MHz to 12.8 MHz. The NP0 dielectric material provides excellent temperature stability, making them ideal for critical circuitry. Moreover, with a maximum surge capability of 35 kV·A and a high RMS current rating of 13.0 A, these capacitors offer robust protection and efficient power handling. Manufactured to meet stringent industry standards, the HT57 Series is a top choice for both consumer electronics and institutional procurement needs.
Product Specifications
Specifications Cap
60 pF
Specifications Dielectric Tc
NP0
Specifications Fh
12.8 MHz
Specifications Fl
0.825 MHz
Specifications Imax Rms
13.0 A
Specifications Smax
35 kV·A

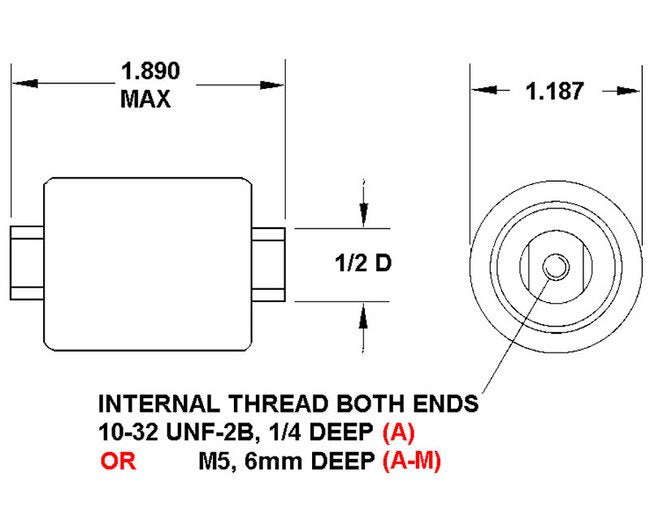

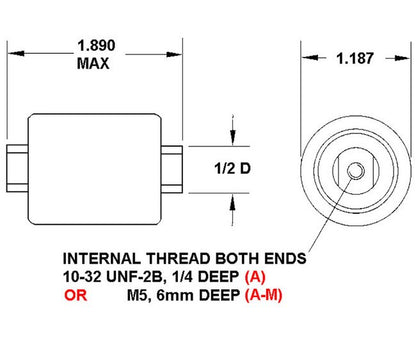

Specifications Thread
10-32
Specifications Vmax Dc
15 kV
