High-Voltage HT57 Ceramic Capacitors - 100pF, 15kV
High-Voltage HT57 Ceramic Capacitors - 100pF, 15kV
SKU:CER-0740b9
High-Voltage ceramic capacitors for demanding applications. 100pF, 15kV rating. Compliant with Federal/DoD standards.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
High-Voltage HT57 Ceramic Capacitors - 100pF, 15kV
$29.99
Quantity: 1
Claim Your Seller Account
High-Voltage HT57 Ceramic Capacitors - 100pF, 15kV
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The HT57 Series Ceramic Capacitors offer exceptional performance in high-voltage applications, featuring a capacitance of 100 pF and a maximum DC voltage rating of 15 kV. Built with N750 dielectric material, these capacitors ensure reliable operation at frequencies ranging from 0.495 MHz to 8.53 MHz. With a robust design capable of handling up to 35 kV·A surge, these capacitors are ideal for demanding electronic systems. Compliant with Federal/DoD procurement standards, these capacitors meet rigorous quality criteria, making them a trusted choice for government and institutional procurement needs.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Cap
100 pF
Specifications Dielectric Tc
N750
Specifications Fh
8.53 MHz
Specifications Fl
0.495 MHz
Specifications Imax Rms
13.7 A
Specifications Smax
35 kV·A

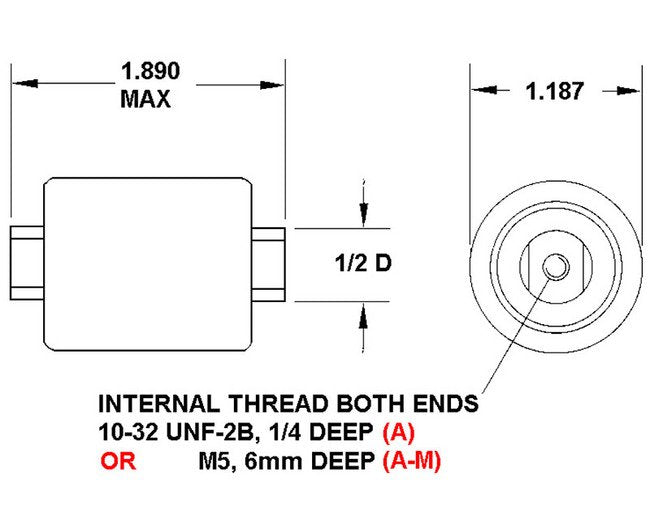

Specifications Thread
10-32
Specifications Vmax Dc
15 kV
