High Voltage HT57 Ceramic Capacitors - 250 pF, 15 kV
High Voltage HT57 Ceramic Capacitors - 250 pF, 15 kV
SKU:CER-5f802c
High-performance HT57 Ceramic Capacitors - 250 pF, 15 kV, ideal for industrial and military electronics.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
High Voltage HT57 Ceramic Capacitors - 250 pF, 15 kV
$29.99
Quantity: 1
Claim Your Seller Account
High Voltage HT57 Ceramic Capacitors - 250 pF, 15 kV
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The HT57 Series Ceramic Capacitors are precision-engineered for high-performance applications requiring exceptional dielectric strength. With a capacitance of 250 pF and a maximum DC voltage of 15 kV, these capacitors offer reliable operation at frequencies ranging from 0.198 MHz to 0.890 MHz. Designed to handle up to 7.00 A RMS current, they come with a durable 10-32 threaded connection. Ideal for industrial, aerospace, and military electronics, these capacitors ensure superior performance and longevity under demanding conditions.
Product Specifications
Specifications Cap
250 pF
Specifications Dielectric Tc
N3300
Specifications Fh
0.890 MHz
Specifications Fl
0.198 MHz
Specifications Imax Rms
7.00 A
Specifications Smax
35 kV·A

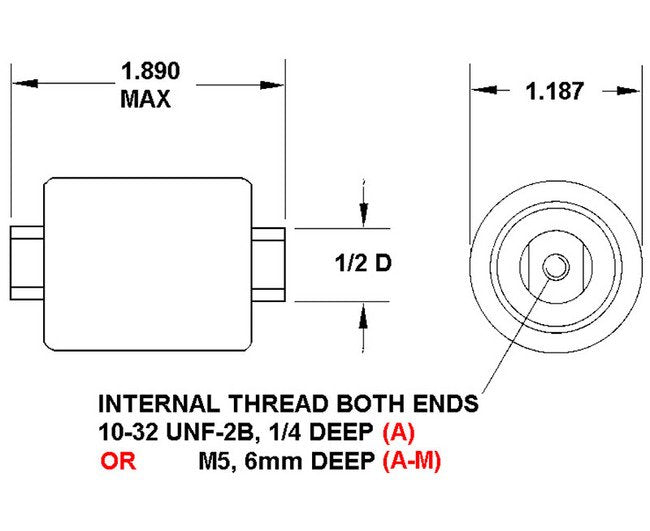

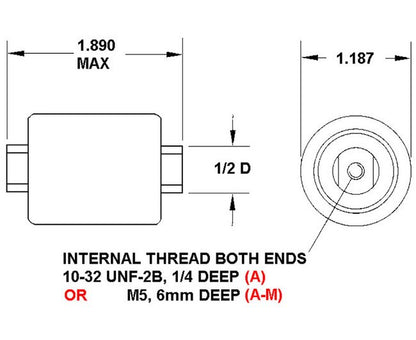

Specifications Thread
10-32
Specifications Vmax Dc
15 kV
