High Voltage HT57 Series Ceramic Capacitors
High Voltage HT57 Series Ceramic Capacitors
SKU:CER-ef8fa7
High-performance HT57 Series Ceramic Capacitors for 15 kVDC applications with 10-500 pF capacitance range & multiple temperature coefficients.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
High Voltage HT57 Series Ceramic Capacitors
$29.99
Quantity: 1
Claim Your Seller Account
High Voltage HT57 Series Ceramic Capacitors
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

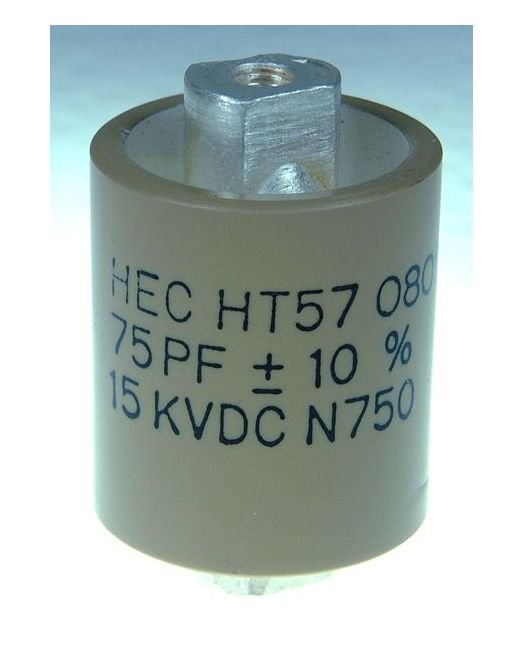

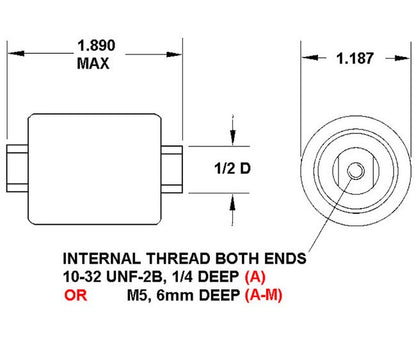

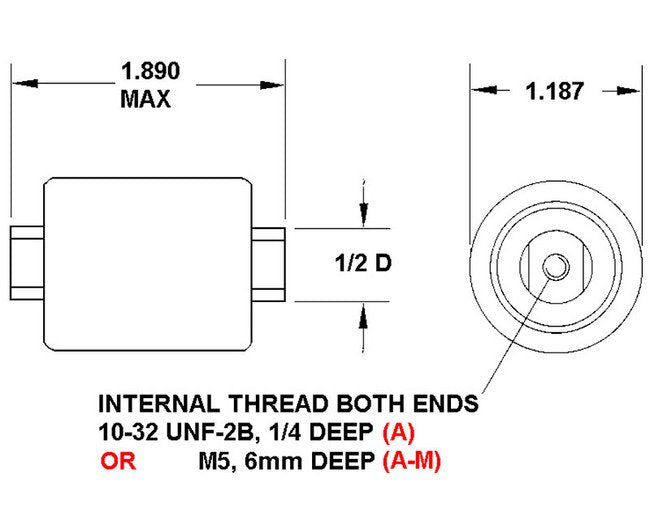

The HT57 Series Ceramic Capacitors are designed for high-performance applications requiring a working voltage of up to 15 kVDC and a maximum power of 35 kVA. With a capacitance ranging from 10 to 500 pF, these capacitors offer versatility in various electronic circuits. Measuring 1.187" in diameter and 1.890" in height, they come with a choice of four Class I temperature coefficients. These capacitors provide reliable performance and precise capacitance values for critical electronic systems, making them ideal for both consumer electronics and institutional requirements.
Product Specifications
Specifications Cap
10 to 500 pF
Specifications Capacitance Tolerance
±2.5% | ±5% | ±10% | ±20%
Specifications Thread
10-32 | M5
Specifications Vmax Dc
7.5 kV | 10 kV | 15 kV
