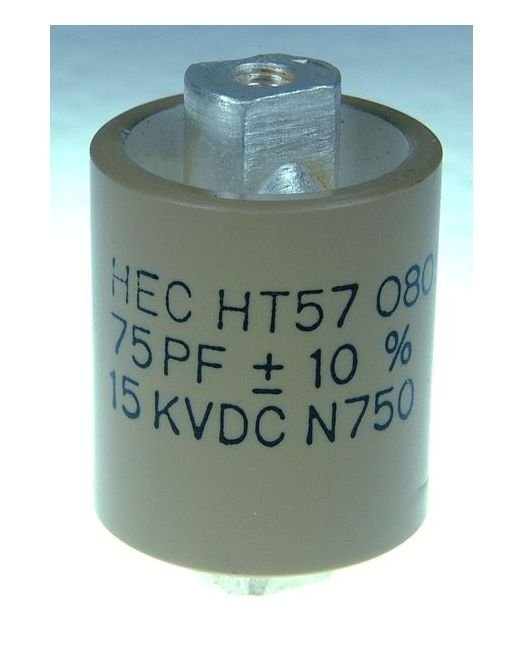

High-Voltage HT57 Series Ceramic Capacitors - 75pF, 15kV
High-Voltage HT57 Series Ceramic Capacitors - 75pF, 15kV
SKU:CER-d551fe
High-Voltage Ceramic Capacitors - 75pF, 15kV, N750 Dielectric, Reliable Performance, Federal Standards Compliant
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
High-Voltage HT57 Series Ceramic Capacitors - 75pF, 15kV
$29.99
Quantity: 1
Claim Your Seller Account
High-Voltage HT57 Series Ceramic Capacitors - 75pF, 15kV
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The HT57 Series Ceramic Capacitors feature a capacitance of 75 pF with a high dielectric strength of 15 kV, making them ideal for applications requiring high-voltage insulation. Built with N750 dielectric material, these capacitors offer stable performance across a frequency range of 0.660 MHz to 10.4 MHz. With a maximum surge capability of 35 kV·A and a robust thread size of 10-32 UNF-2B, these capacitors ensure reliable operation in demanding environments. Compliant with Federal procurement standards and industry-specific certifications, the HT57 Series is a trusted choice for institutional buyers seeking top-tier performance and reliability.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Cap
75 pF
Specifications Dielectric Tc
N750
Specifications Fh
10.4 MHz
Specifications Fl
0.660 MHz
Specifications Imax Rms
13.1 A
Specifications Smax
35 kV·A

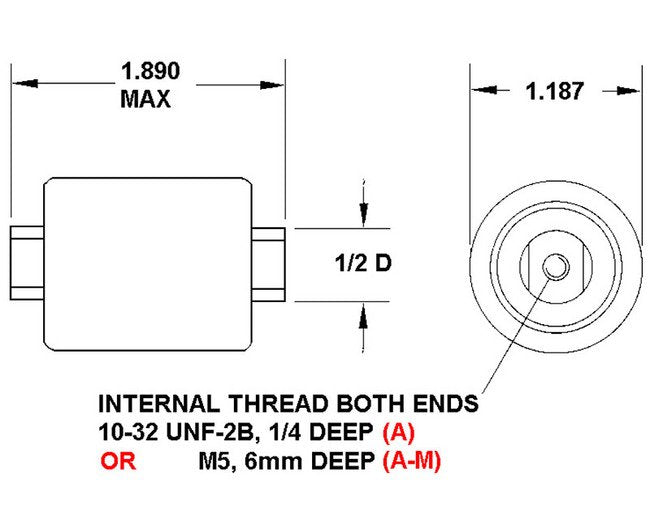

Specifications Thread
10-32
Specifications Vmax Dc
15 kV
