High-Voltage HT59 Ceramic Capacitors
High-Voltage HT59 Ceramic Capacitors
SKU:CER-445df5
High-Voltage HT59 Ceramic Capacitors with 25kVDC, 50kVA Max Power, 50-1500pF Capacitance, and NP0 Dielectric. Optimal for high-frequency applications.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
High-Voltage HT59 Ceramic Capacitors
$49.99
Quantity: 1
Claim Your Seller Account
High-Voltage HT59 Ceramic Capacitors
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

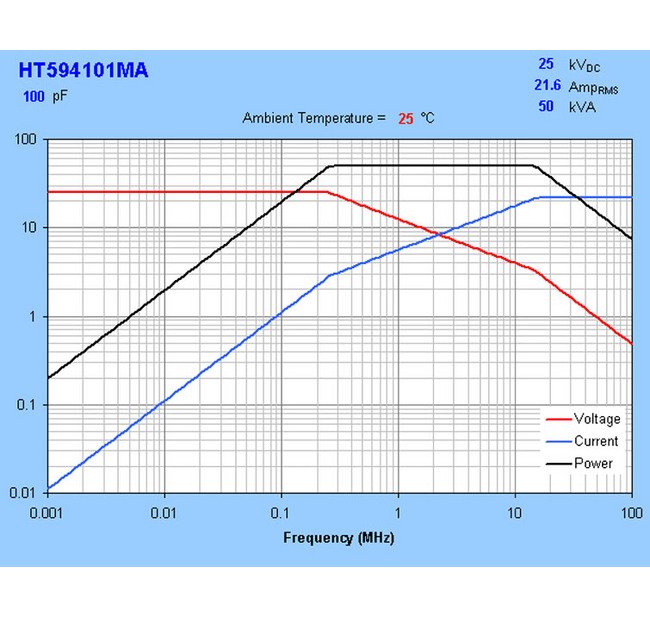

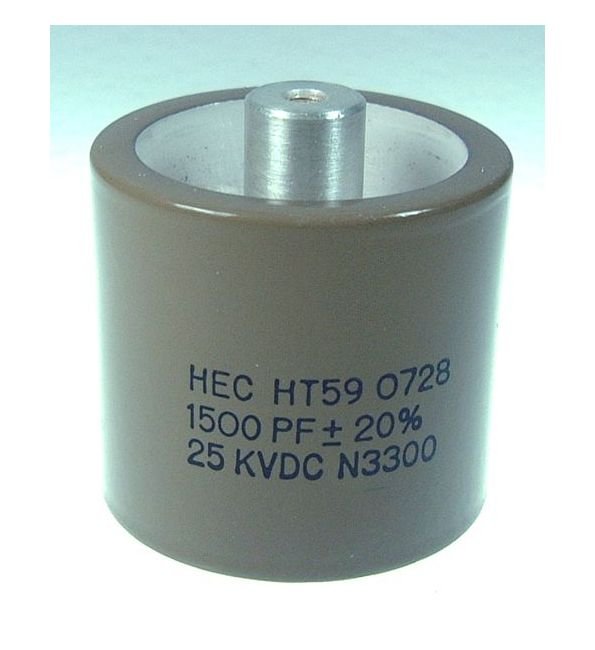

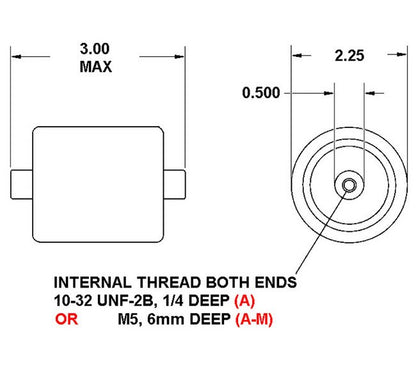

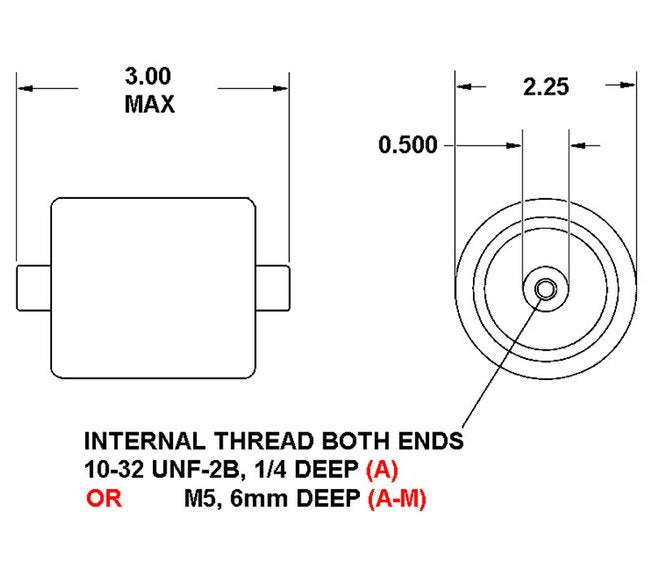

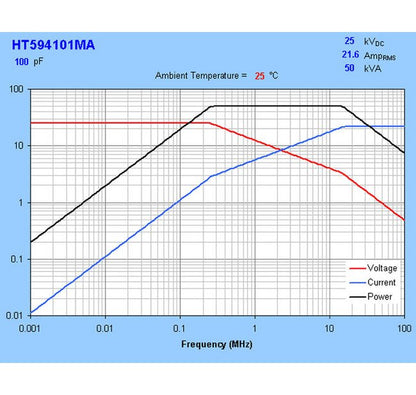

The HT59 Series Ceramic Capacitors are engineered for high-performance applications requiring reliable 25 kVDC working voltage and a maximum power of 50 kVA. With a capacitance range of 50 to 1500 pF, these Class I TC capacitors offer precision and stability. Featuring NP0 dielectric material and a choice of four temperature coefficients, these capacitors ensure consistent operation across a wide frequency range from 0.254 MHz to 13.0 MHz. The 2.25" diameter and 3" maximum length make them versatile for various electronic assemblies. Compliant with stringent industry standards, these capacitors guarantee exceptional performance and longevity in demanding environments.
Product Specifications
Specifications Cap
100 pF
Specifications Dielectric Tc
NP0
Specifications Fh
13.0 MHz
Specifications Fl
0.254 MHz
Specifications Imax Rms
20.2 A
Specifications Smax
50 kV·A
Specifications Thread
10-32
Specifications Vmax Dc
25 kV
