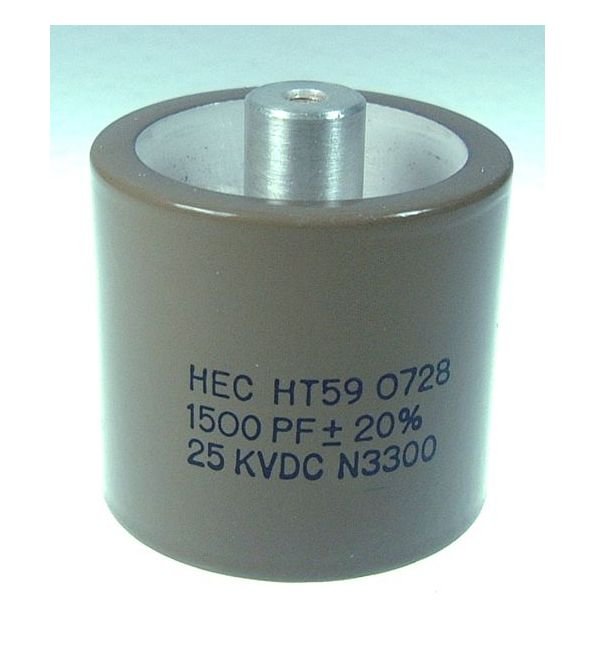

High-Voltage HT59 Ceramic Capacitors
High-Voltage HT59 Ceramic Capacitors
SKU:CER-0b66e7
Experience high-voltage reliability with our HT59 Ceramic Capacitors - ideal for demanding applications. Choose from a range of capacitance options and Class I TCs.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
High-Voltage HT59 Ceramic Capacitors
$39.99
Quantity: 1
Claim Your Seller Account
High-Voltage HT59 Ceramic Capacitors
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

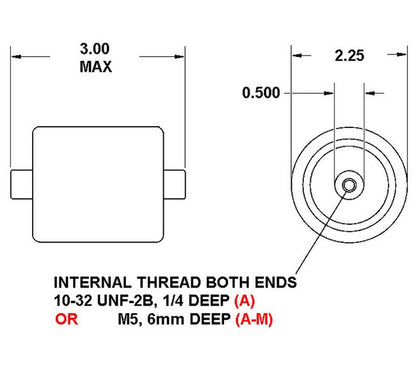

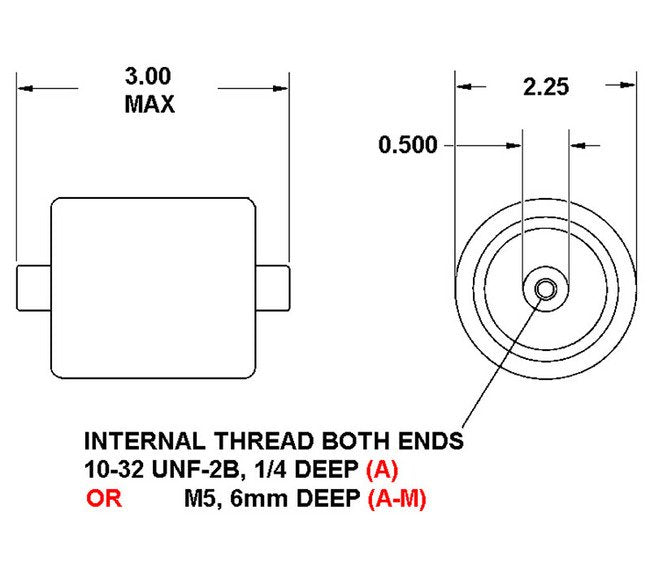

The HT59 Series Ceramic Capacitors are engineered for high-performance applications with a 25 kVDC working voltage and a maximum power rating of 50 kVA. These capacitors offer a capacitance range of 50 to 1500 pF, ensuring versatility in diverse electronic setups. With a 2.25" diameter and 3" maximum length, these capacitors are compact and reliable. Choose from four Class I TCs for precise temperature coefficients, meeting stringent institutional requirements. Built with NP0 dielectric and designed to operate within a frequency range of 0.196 MHz to 14.2 MHz, these capacitors deliver exceptional performance and stability under varying conditions.
Product Specifications
Specifications Cap
130 pF
Specifications Dielectric Tc
NP0
Specifications Fh
14.2 MHz
Specifications Fl
0.196 MHz
Specifications Imax Rms
24.1 A
Specifications Smax
50 kV·A
Specifications Thread
10-32
Specifications Vmax Dc
25 kV
