High Voltage HT59 Ceramic Capacitors
High Voltage HT59 Ceramic Capacitors
SKU:CER-55d155
High-performance HT59 Ceramic Capacitors with 25 kVDC, 50 kVA, and a range of 50-1500 pF. Ideal for industrial and institutional applications.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
High Voltage HT59 Ceramic Capacitors
$59.99
Quantity: 1
Claim Your Seller Account
High Voltage HT59 Ceramic Capacitors
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

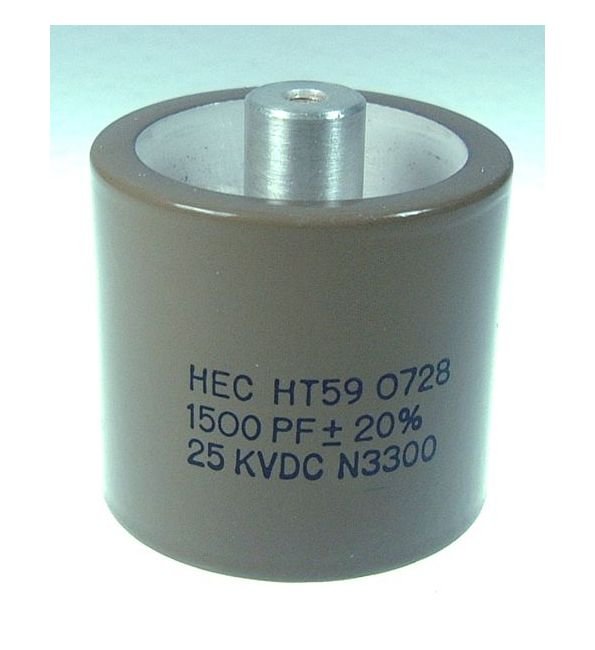

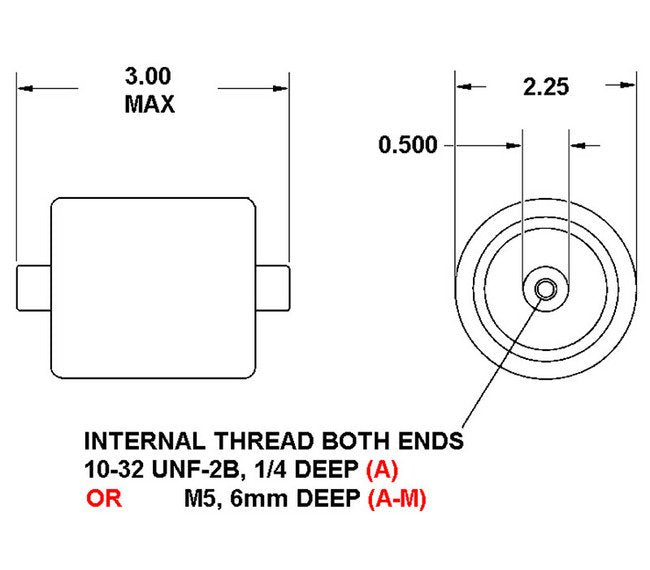

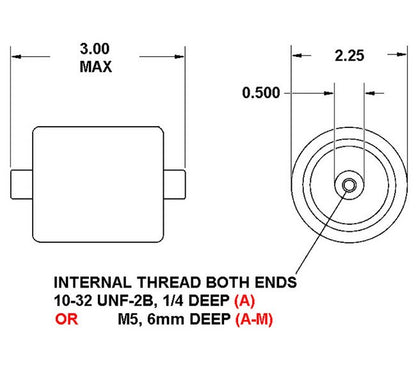

The HT59 Series Ceramic Capacitors are designed for high-performance applications requiring a working voltage of 25 kVDC and a maximum power of 50 kVA. With a capacitance range of 50 to 1500 pF, these capacitors offer exceptional reliability and precision. Measuring at 2.25" in diameter and 3" maximum length, the HT59 series comes with a choice of four Class I TC's, ensuring compatibility with various systems and configurations. These capacitors are ideal for industrial, government, and institutional use, meeting stringent quality and performance standards.

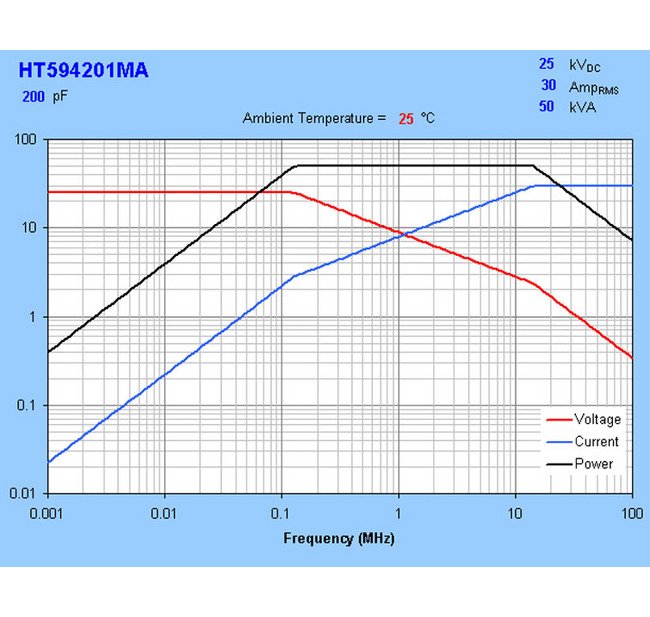

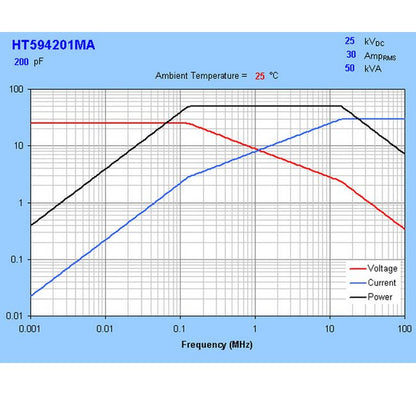

Product Specifications
Specifications Cap
200 pF
Specifications Dielectric Tc
N750
Specifications Fh
14.3 MHz
Specifications Fl
0.127 MHz
Specifications Imax Rms
30.0 A
Specifications Smax
50 kV·A
Specifications Thread
10-32
Specifications Vmax Dc
25 kV
