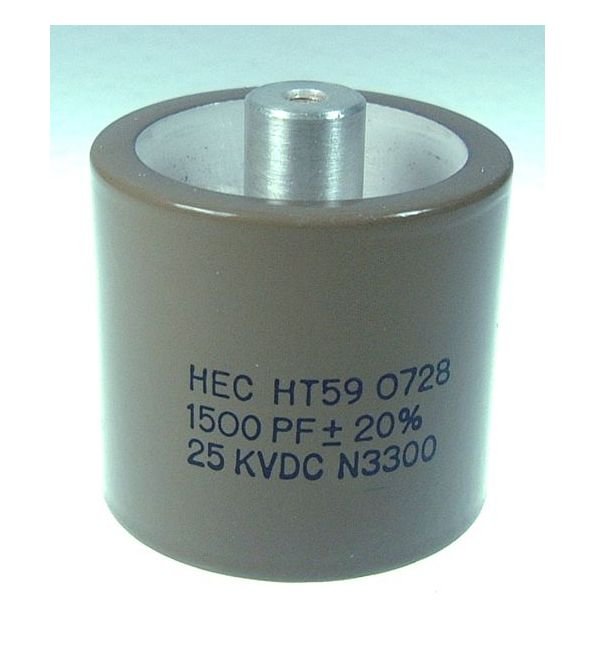

High Voltage HT59 Ceramic Capacitors
High Voltage HT59 Ceramic Capacitors
SKU:CER-361749
High Voltage HT59 Ceramic Capacitors - Reliable, high-performance capacitors for industrial, government, and defense applications.
Regular price
$79.99
Regular price
Sale price
$79.99
Unit price
per
Initiate Order
High Voltage HT59 Ceramic Capacitors
$79.99
Quantity: 1
Claim Your Seller Account
High Voltage HT59 Ceramic Capacitors
$79.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

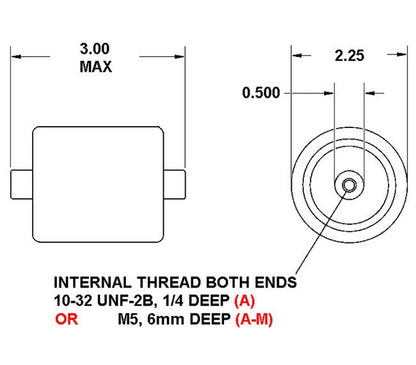

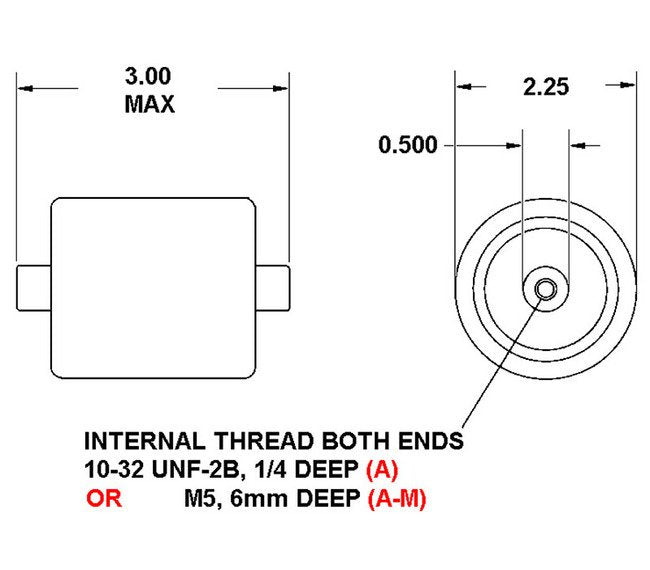

The HT59 Series Ceramic Capacitors offer exceptional performance for high-voltage applications, featuring a 25 kVDC Working Voltage and a capacitance range of 50 to 1500 pF. With a maximum power rating of 50 kVA, these capacitors ensure reliable operation in demanding environments. Each capacitor comes in a compact 2.25" Diameter x 3" Maximum Length design and offers a choice of four Class I TC dielectric options, including N750. These capacitors are ideal for industrial, governmental, and defense applications requiring precise and stable capacitance levels at high voltages.
Product Specifications
Specifications Cap
250 pF
Specifications Dielectric Tc
N750
Specifications Fh
16.0 MHz
Specifications Fl
0.102 MHz
Specifications Imax Rms
35.5 A
Specifications Smax
50 kV·A
Specifications Thread
10-32
Specifications Vmax Dc
25 kV
