High Voltage HT59 Series Ceramic Capacitors
High Voltage HT59 Series Ceramic Capacitors
SKU:CER-b82aab
High performance HT59 Series Ceramic Capacitors with 25 kVDC, 50 kVA Max Power, and 50-1500 pF Capacitance. Reliable and efficient for diverse electronic applications.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
High Voltage HT59 Series Ceramic Capacitors
$39.99
Quantity: 1
Claim Your Seller Account
High Voltage HT59 Series Ceramic Capacitors
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

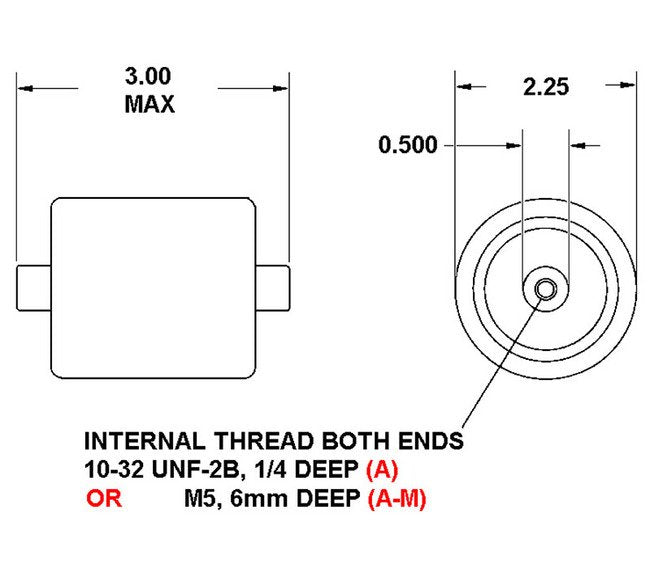

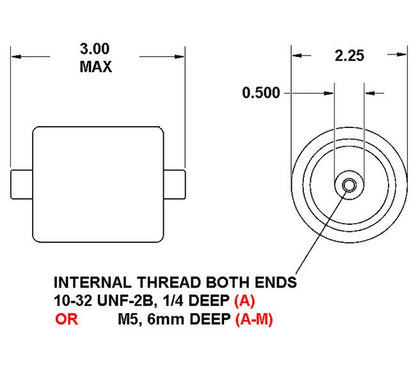

The HT59 Series Ceramic Capacitors are expertly designed for demanding applications requiring high performance. With a working voltage of 25 kVDC and a maximum power of 50 kVA, these capacitors offer reliable and efficient operation. Ranging from 50 to 1500 pF capacitance, they provide flexibility to suit various electronic configurations. Measuring 2.25" in diameter and 3" in length, these capacitors come with a choice of four Class I TC's, ensuring precision and quality. Ideal for both consumer electronics and institutional projects, these capacitors deliver exceptional performance and durability.
Product Specifications
Specifications Cap
300 pF
Specifications Dielectric Tc
N3300
Specifications Fh
5.18 MHz
Specifications Fl
0.0848 MHz
Specifications Imax Rms
22.1 A
Specifications Smax
50 kV·A
Specifications Thread
10-32
Specifications Vmax Dc
25 kV
